Adjusting Feed Auger Height

Adjust feed auger springs. (See Adjusting Feed Auger Springs in this section.)

When feed auger arm (E) rests on the rubber stop (D), the distance (G) between feed auger flight (A) and bottom sheet (F) should be within specification.

Specification

Feed Auger Flight to Bottom Sheet -Distance 20 ± 5 mm (0.8 ± 0.2 in.)

If the distance is not correct, proceed as follows:

1. Release feed auger springs (B) on both sides.

2. Raise the feed auger with a hoist.

3. Add or remove shims between rubber stop (D) and support (C) to obtain the desired distance.

NOTE: The needed shims can be removed from the lower rubber stop.

4. Adjust feed auger springs (B). (See Adjusting Feed Auger Springs in this section.)

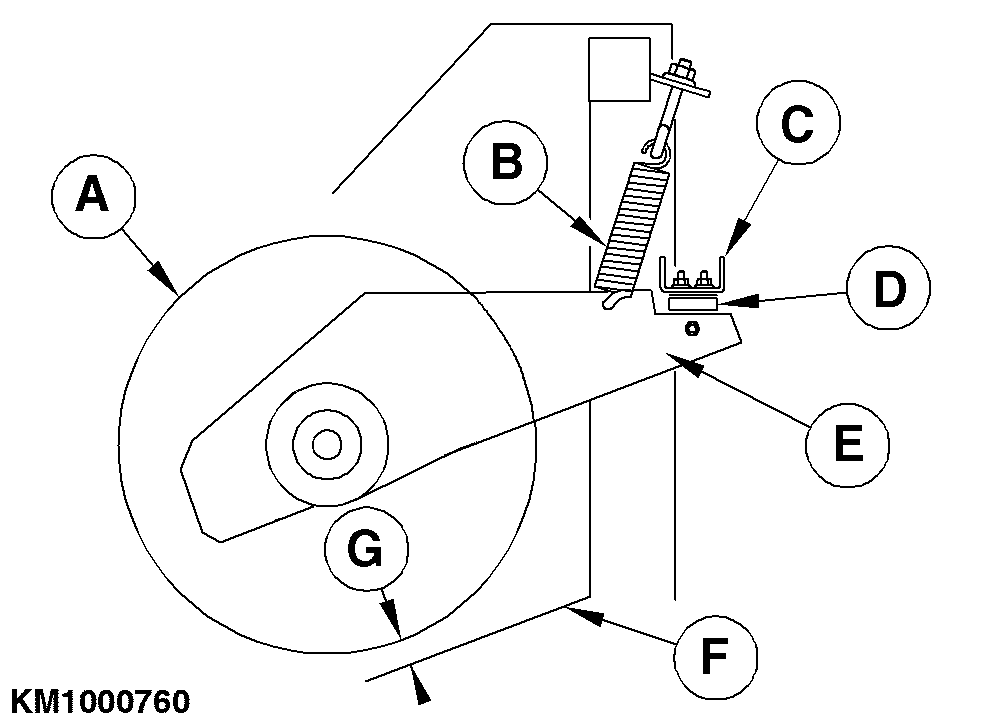

KM1000760


A-Feed auger flight
B-Spring
C-Stop support
D-Rubber stop
E-Feed auger arm
F-Bottom sheet
G-20 ± 5 mm (0.8 ± 0.2 in.)
