Adjusting Automatic Auger Lifting (Option)

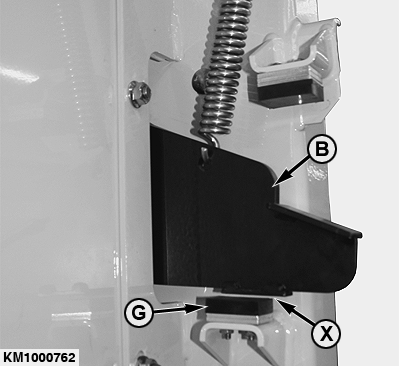

When cylinders (A) are fully extended and the roller compression unit is completely raised, feed auger arm (B) must not touch the lower stop support (G). Adjust a minimum distance (X) of 3 mm (0.12 in.).

If the distance is not correct, proceed as follows:

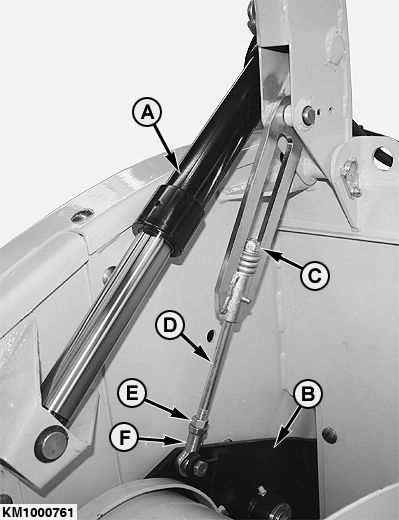

2. Turn lock nut (C) counter-clockwise to increase distance (X).

Turn lock nut (C) clockwise to decrease distance (X).

CAUTION: Make sure that threaded rod (D) is always fully screwed in plastic ring of lock nut (C).

3. Raise roller compression unit completely to check distance (X).

Repeat procedure as often as necessary.

NOTE: If threaded rod (D) is too short for proper adjustment, loosen nut (E). Turn threaded rod (D) counter-clockwise and then retighten nut (E).

CAUTION: Make sure that threaded rod (D) is screwed in joint yoke (F) with a minimum length of 10 mm (0.39 in.)

4. Repeat procedure on the opposite side.

A-Cylinder
B-Feed auger arm
C-Lock nut
D-Threaded rod
E-Nut
F-Joint yoke
G-Stop support
X-3 mm (0.12 in.)
