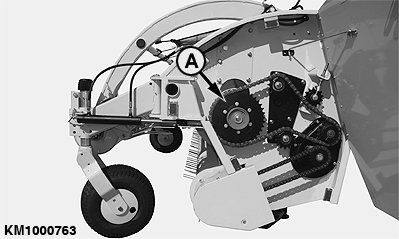

Adjusting Feed Auger SpeedDepending on field conditions and harvester working speed, the feed auger speed can be modified allowing the pickup unit to better match with the harvester output. Pickup base machine is delivered with a 38-tooth auger drive sprocket (A). As an option it can be equipped with a 30-tooth auger drive sprocket (A) to increase the feed auger speed. Refer to the following chart to select the appropriate speed. The speeds of the auger are given in the chart below. |
|
| Harvester Model | Harvester header drive selected speed | Input shaft speed | Auger speed with 38 teeth sprocket (A) | Auger speed with 30 teeth sprocket (A) |
|---|---|---|---|---|
| 7850 7750 |
HIGH LOW |
555 rpm 421 rpm |
234 rpm 178 rpm |
296 rpm 225rpm |
| 7550 7450 7350 |
HIGH LOW |
532 rpm 403 rpm |
224 rpm 170 rpm |
284 rpm 215 rpm |
| 7250 | HIGH LOW |
463 rpm 350 rpm |
195 rpm 148 rpm |
247 rpm 187 rpm |
| 7800 7700 7500 |
HIGH LOW |
532 rpm 403 rpm |
224 rpm 170 rpm |
284 rpm 215 rpm |
| 7400 7300 7200 |
HIGH LOW |
463 rpm 350 rpm |
195 rpm 148 rpm |
247 rpm 187 rpm |
| 6950 | HIGH LOW |
532 rpm 403 rpm |
224 rpm 170 rpm |
284 rpm 215 rpm |
| 6850 6750 6650 |
HIGH LOW |
463 rpm 350 rpm |
195 rpm 148 rpm |
247 rpm 187 rpm |
| 6910 6810 6710 6610 |
HIGH LOW |
463 rpm 350 rpm |
195 rpm 148 rpm |
247 rpm 187 rpm |
KM00321,00000F7 -19-23JAN09-1/1 |
