Adjusting the Stone Trap

Loosen fixing screws (A).

Depending on the crop flow, crop density and stone size, adjust stone trap (B) opening so that no crop is falling through the opening.

Tighten fixing screws (A).

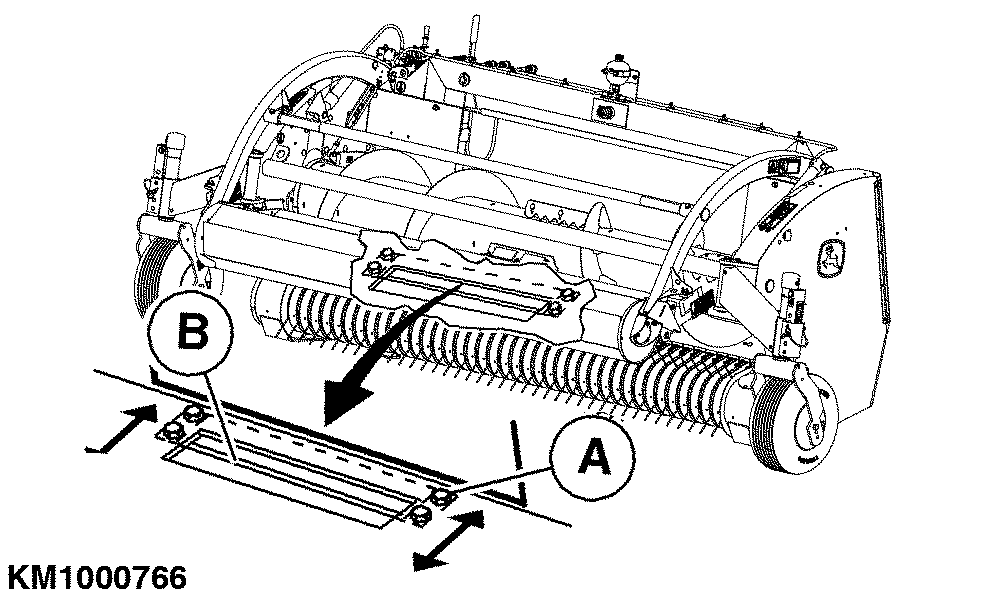

A-Screws
B-Stone trap

KM00321,00000F9 -19-26JAN09-1/1
