Special Kit for Feed Auger Drive High Speed

A special kit is available to increase the feed auger speed. (See Adjusting Feed Auger Speed in Operating the Pickup Section.)

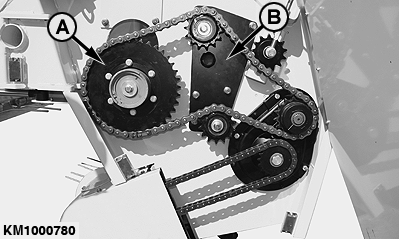

This kit is composed of a 30-tooth sprocket (A) and a retaining plate (B).

IMPORTANT: Always install sprocket (A) with the appropriate retaining plate (B).

A-30-tooth sprocket
B-Retaining plate

KM00321,00000FA -19-30JAN09-1/1
