Every 500 Hours - Gear Case

Change the oil after every 500 hours of operation or at the end of each harvesting season.

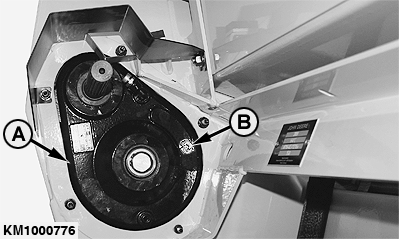

Raise pickup slightly so that it is horizontal, and check oil level in gear case (A). Oil level is correct when it reaches the bottom edge of oil level plug (B).

IMPORTANT: Do not overfill gear case (A) as this will result in overheating and oil leakage.


A-Gear case - 0.4 L (0.11 US. gal)
B-Oil level plug

KM1000776

KM00321,0000103 -19-27JAN09-1/1
