Adjusting the Drive Chains

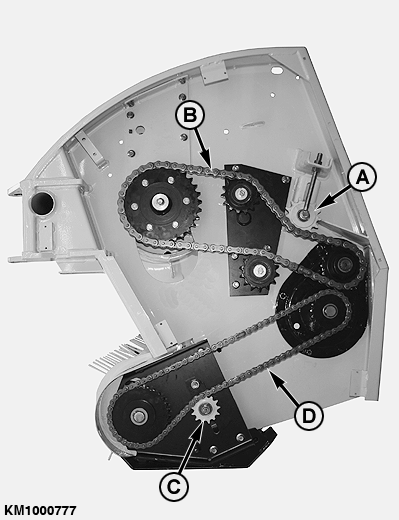

Use idler sprocket (A) to tighten chain (B) which drives the feed auger.

Adjust idler sprocket (A) to get a slack of between 3 to 10 mm (0.12 to 0.4 in.) on the strand opposite the drive chain idler.

Use idler sprocket (C) to tighten chain (D) which drives the pickup cylinder.

Adjust idler sprocket (C) to get a slack of between 10 to 15 mm (0.4 to 0.6 in.) on the strand opposite the drive chain idler.

A-Idler sprocket
B-Feed auger drive chain
C-Idler sprocket
D-Cylinder drive chain

KM00321,0000104 -19-27JAN09-1/1
