Adjust the pickup so that the cylinder teeth are X = 25 mm (1 in.) above the ground.
For proper adjustment see Adjusting Gauge Wheel Height in Operating the Pickup Section.

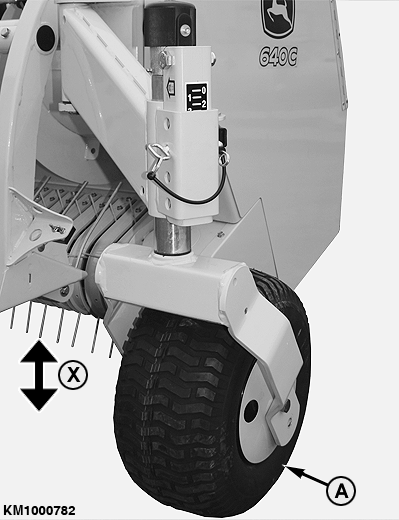

A-Gauge wheel X-25 mm (1 in.)
KM00321,000010F -19-03FEB09-1/1
