Check Adjustment of Automatic Auger Lifting (Option)

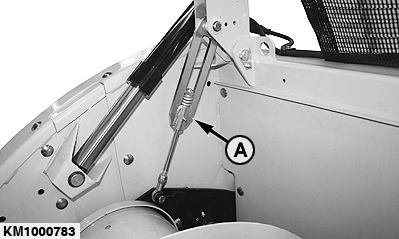

After all options have been properly assembled, check adjustment of auger lifting device (A) on either side.

For proper adjustment see Adjusting Automatic Auger Lifting in Operating the Pickup Section.

A-Auger lifting device

KM00321,0000110 -19-03FEB09-1/1
