Opening the Side Guard

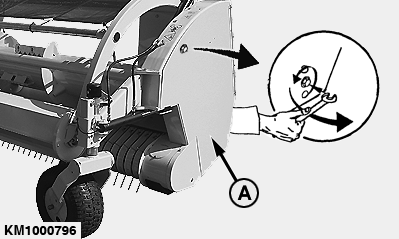

Open folding side guard (A) by means of a suitable tool, width across flats 13 mm.

NOTE: A special 13 mm door lock key is provided separately with pickup.

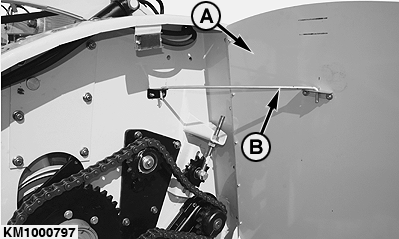

Swing guard (A) outwards, then lock it with rod (B).

A-Guard
B-Rod

KM00321,0000120 -19-12FEB09-1/1
