Follow Safe Operating Procedures
 CAUTION:
Before carrying out any adjustment always disengage all drives, shut off engine and wait until all moving parts have stopped.
CAUTION:
Before working on a raised pickup, always install header lift cylinder safety lock to prevent pickup from lowering. (See your self-propelled forage harvester Operator's Manual.)
CAUTION:

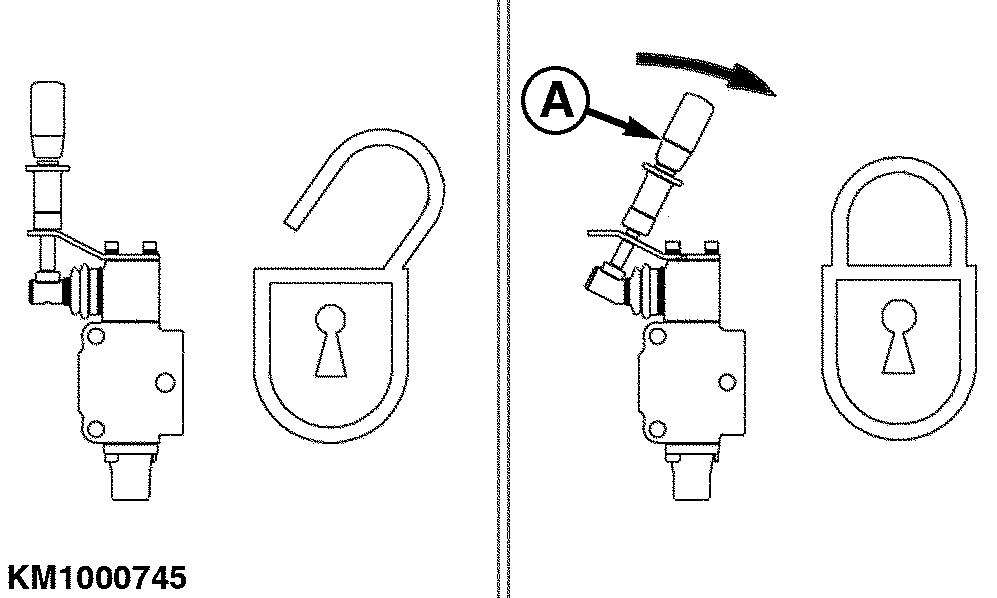

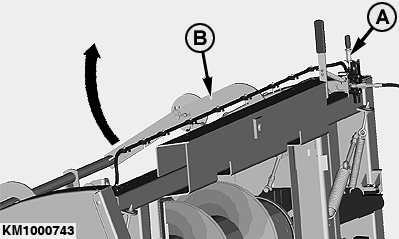

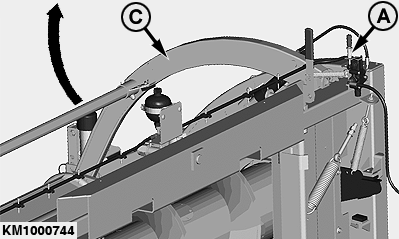

When working on a raised crop deflector (B) or on a raised roller compression unit (C) (option), close safety valve (A) to prevent crop deflector (B) or roller compression unit (C) from unintentional lowering.
A-Safety valve
B-Crop deflector
C-Roller compression unit
|
