Working Under A Raised Roller Compression Unit (Option)
KM1000852

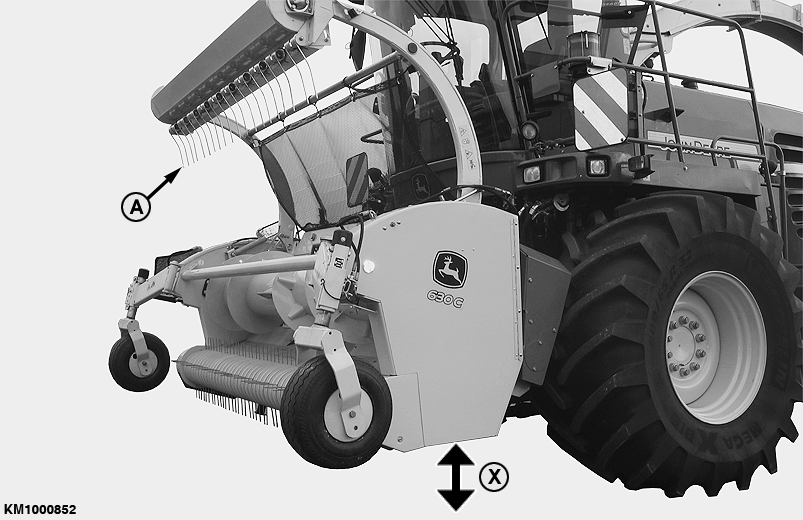

causym CAUTION: Pay extreme attention when clearing blockages or working under a raised roller compression unit (option). The tips of rake (A) can cause serious injury.

IMPORTANT: Before working under a raised roller compression unit, proceed as follows:

1. Raise the pickup completely:

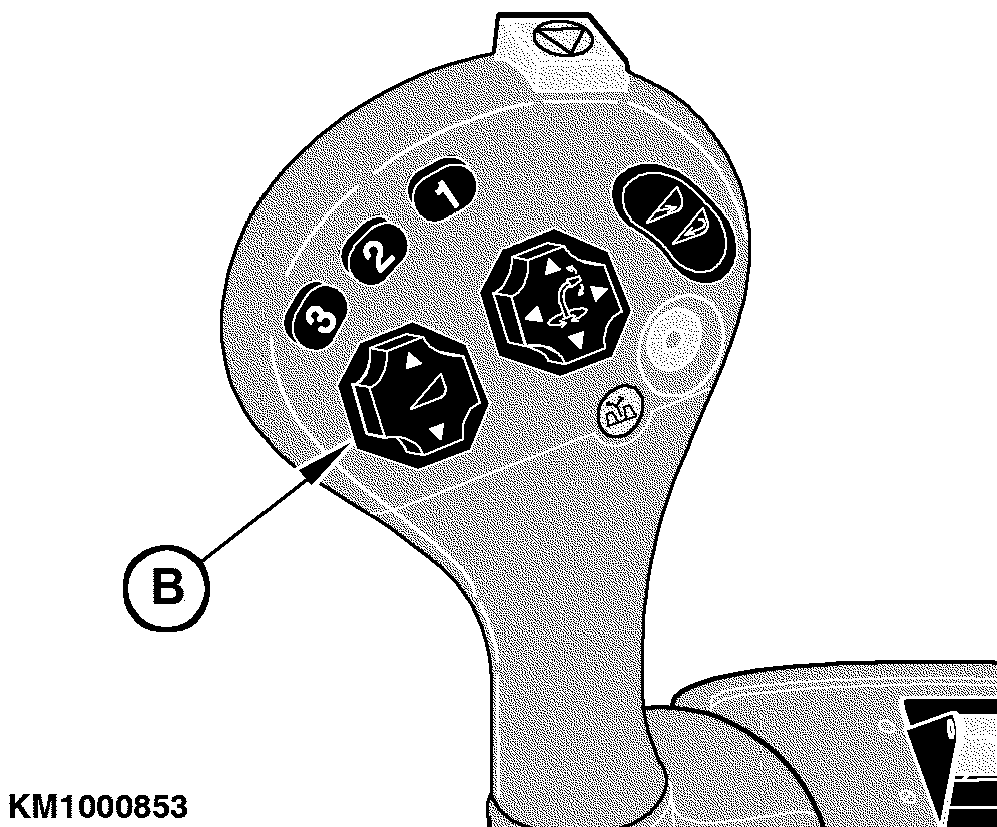

Press and hold top of switch (B) until the pickup is raised to its maximum height (X).


A-Rake
B-Switch
X-Pickup maximum height

KM1000853

KM00321,0000233 -19-05OCT09-1/4

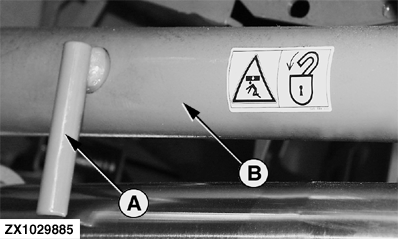

2. Install locking pin (A) into guide (B) of forage harvester to secure harvesting unit lift cylinders.


A-Locking pin
B-Guide

ZX1029885

KM00321,0000233 -19-05OCT09-2/4

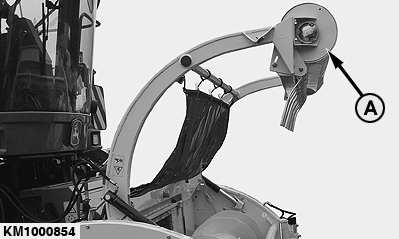

3. Raise roller compression unit (A) completely:

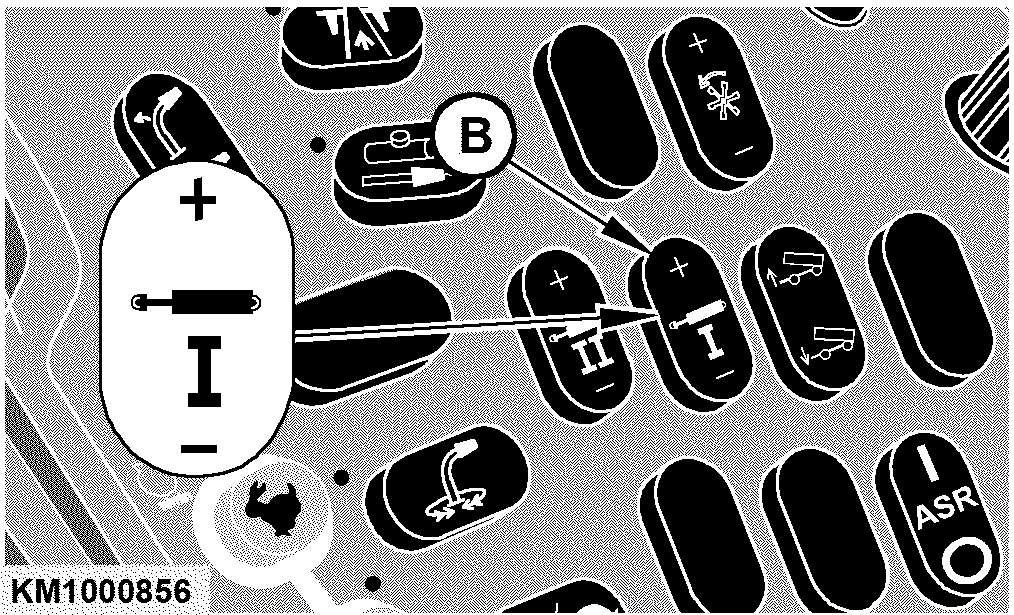

Press and hold top of switch (B) until the roller compression unit is raised to its maximum height.


A-Roller compression unit
B-Switch

KM1000854
KM1000856

KM00321,0000233 -19-05OCT09-3/4

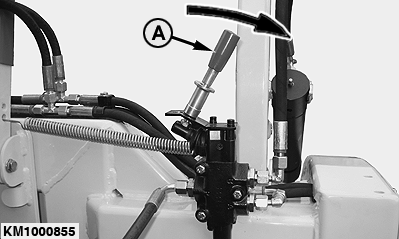

4. Close safety valve (A) to prevent roller compression unit from unintentional lowering.


A-Safety valve

KM1000855
