Operating the Roller Compression Unit (Option)

The contact pressure of the roller compression unit is adjusted by the oil pressure in accumulator (A).

CAUTION: Accumulator (A) may only be detached or put into operation by hydraulically trained engineers or technicians. Do not perform any welding, soldering or mechanical work on the hydraulic accumulator.

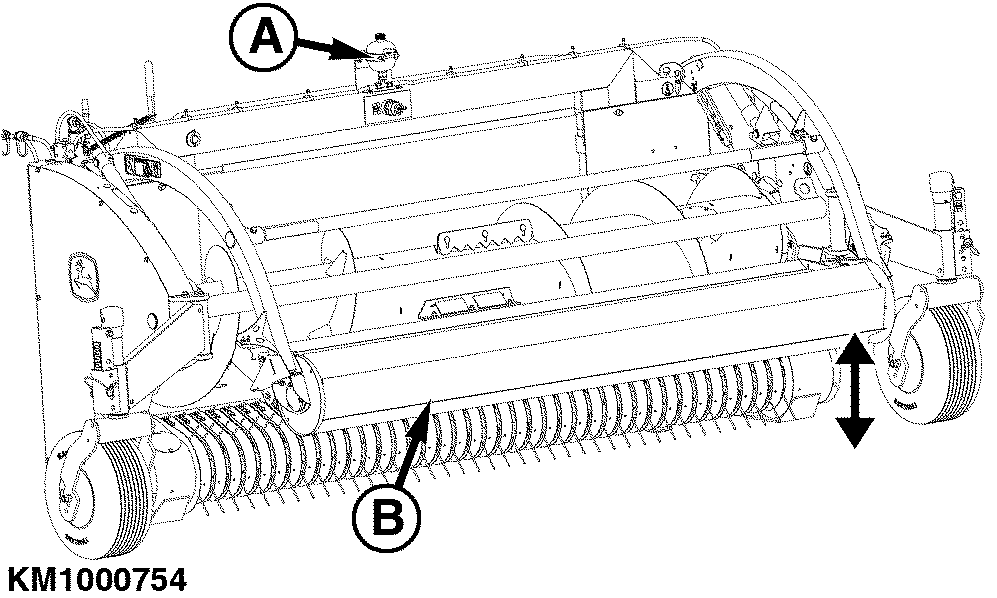

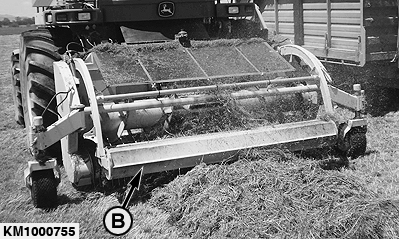

Raise roller compression unit so that the roller (B) on the roller compression unit does not push the crop up but always lies on the swath (see illustration).

NOTE: The oil pressure in accumulator (A) leads the roller compression unit on the swath.

A-Accumulator
B-Roller
