Adjusting Rake of Roller Compression Unit (Option)

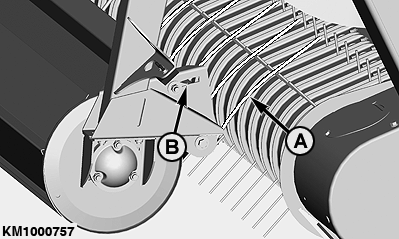

Position rake (A) in the slot holes (B) on both sides in such a way that the tips of rake (A) are always aligned parallel to the pickup cylinder.

NOTE: First position rake (A) in the middle of slot hole (B). Check alignment to the pickup cylinder and adjust if necessary.

A-Rake
B-Slot hole

KM00321,0000235 -19-06OCT09-1/2

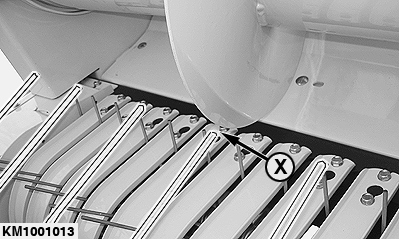

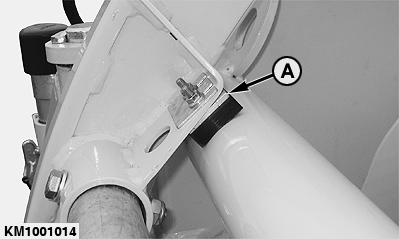

Add or remove shims (A) at rubber stop until there is a distance (X) of 3 to 5 mm (0.12 to 0.19 in.) between rake and feed auger wings.

A-Shims
X-3 to 5 mm (0.12 to 0.19 in.)

KM00321,0000235 -19-06OCT09-2/2
