Feeding Auger Rubber Stops

Feed auger upper and lower rubber stops (A)-(B) are replacable.

When replacing upper rubber stop (A), see "Adjusting Feed Auger Height" in "Operating the Pickup" Section.

When replacing lower rubber stop (B), always check that there is no contact between feed auger pivot arms and side walls. Slide shims between rubber stops (B) and supports (E) as necessary.

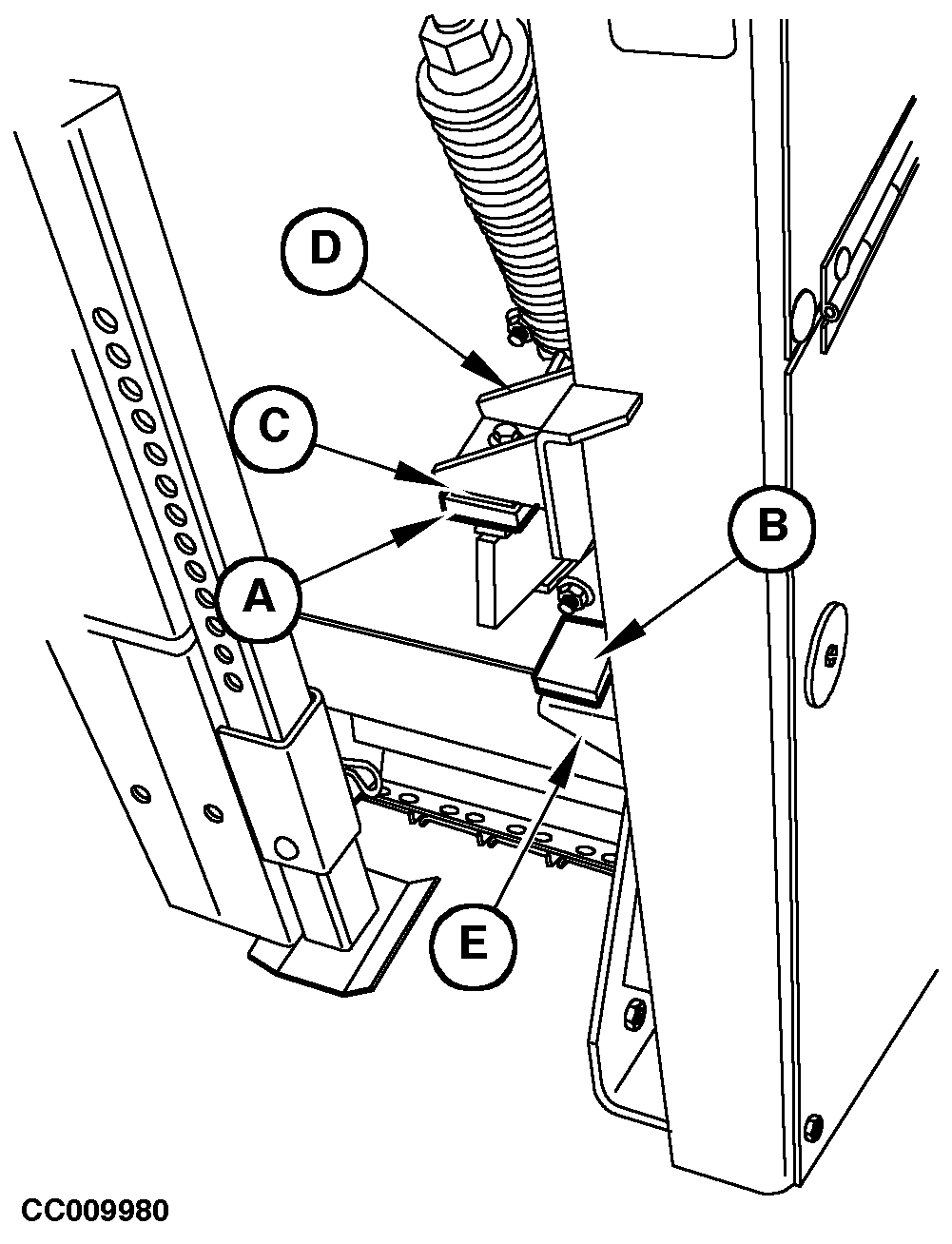

A-Upper rubber stop
B-Lower rubber stop
C-Shims
D-Upper rubber stop support
E-Lower rubber stop support
