Adjusting Crop Deflector Sheet Angle

Depending on crop conditions and windrow thickness, deflector sheet (A) angle must be adjusted so that material is well canalized up to the feeding auger.

Adjust deflector sheet angle as follows:

1. First, adjust deflector working height. (See "Adjusting Crop Deflector Working Height" in this Section.)

2. Loosen screw (B) (one on each side) and adjust angle of sheet (A). Adjusting range is 60°.

3. Firmly tighten screws (B).

NOTE: This adjustment may be necessary when the deflector working height has been modified.

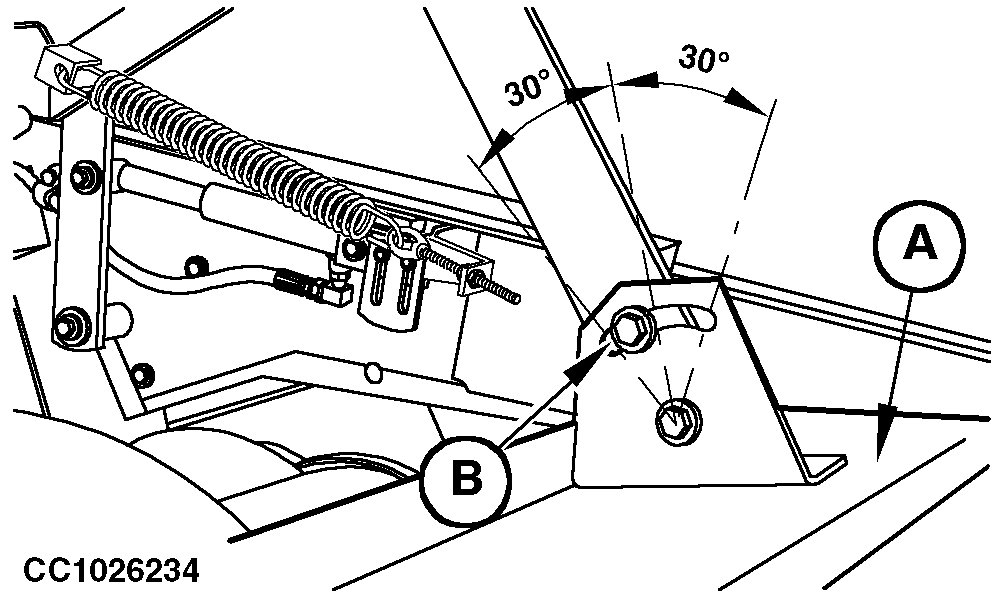

CC1026234


A-Crop deflector sheet
B-Screws

OUCC006,0000C0E -19-01DEC04-1/1
