Adjusting Feed Auger Retractable Fingers (if equipped)

Adjustment is performed at the right-hand side of the pickup.

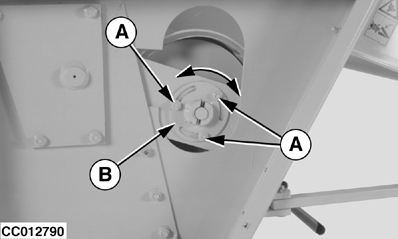

2. Loosen lock nuts (A).

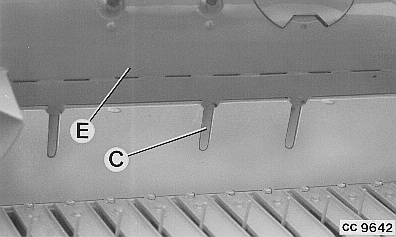

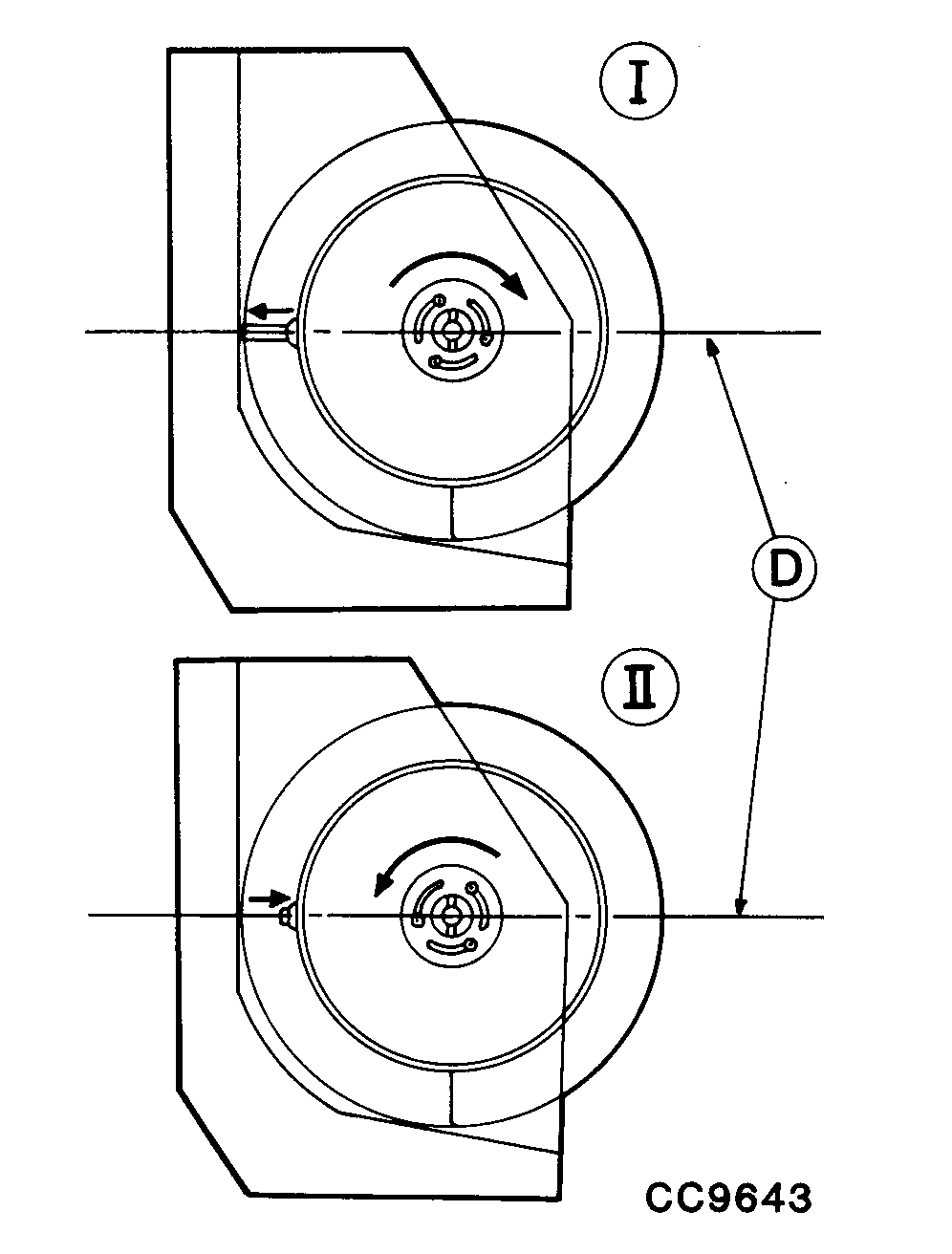

3. The retractable fingers must be fully retracted when they pass above the horizontal line (D) which runs through the center of the feed auger (E).

Turn hub (B) clockwise to extend the retractable fingers (C).

Turn hub (B) counterclockwise to retract the retractable fingers (C).

4. Retighten lock nuts (A).

5. Close the right-hand side guard.

A-Lock nuts
B-Hub
C-Feeding auger fingers
D-Horizontal line
E-Feeding auger
I-Fingers extended
II-Fingers retracted

OUCC006,0000CC5 -19-03NOV04-1/1
