Adjusting Feed Auger Paddles (if equipped)

The paddles improve feeding in light and short crops.

2. Move paddle (B) until the desired position is obtained.

NOTE: Move paddle further outward in very short crop and further inward in higher crop.

3. Tighten bolts (A).

Repeat this procedure for each paddle.

NOTE: When paddles are not required, assemble the paddles with teeth toward the auger tube to avoid paddle support wear.

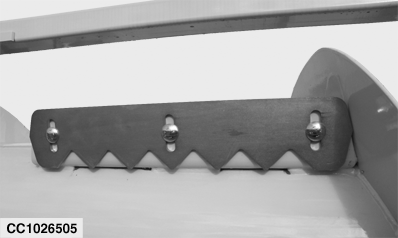

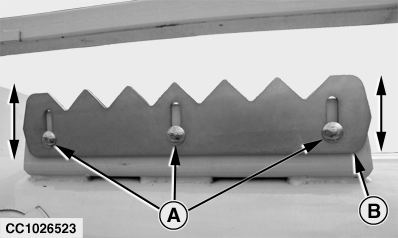

A-Bolts
B-Paddle
