Adjusting the Scrapers

1. Slacken off nuts (A).

2. Move scrapers (B) forward to obtain specified clearance between flight (C) and the scrapers (B).

Specification

Flight to Scraper -Clearance 1 - 4 mm (0.04 - 0.15 in.)

3. Retighten nuts (A).

4. Turn the auger by hand to make sure it can rotate freely.

IMPORTANT: The scrapers must be installed under the angle with screw head facing down.

Two scrapers are located on pickup and two on the attaching frame. Ensure that the scrapers are parallel to the auger at all times.

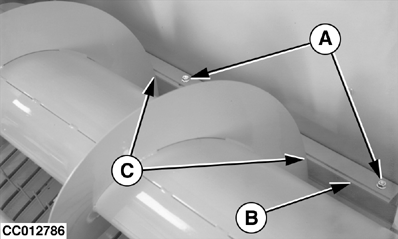

CC012786


A-Nuts
B-Scrapers
C-Flight
