Adjust Locking Device (Only for Initial Use)

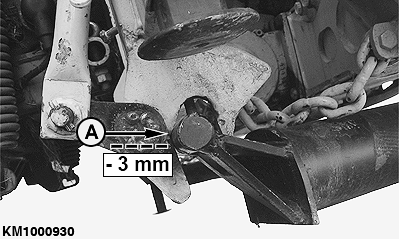

KM1000930-UN-30JUL09

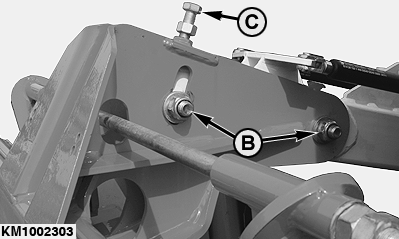

KM1002303-UN-21MAY12

A - Locking Pawl

B - Screws

C - Set Screw

When attaching the support wheel for the first time, the position of the locking device must be adjusted.

Correct locking device position:

Between the top position of the open locking pawl (A) and approx. 3 mm below the top position.

Adjustment procedure:

• Lift rotary harvesting unit.
• Remove screws (B).
• Adjust height of support wheel using set screw (C) until locking device is in the position described above.
• Retighten screws (B).
