Check and Adjust Sensors

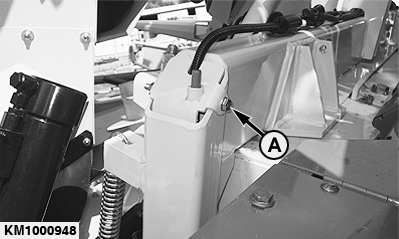

KM1000948-UN-11AUG09

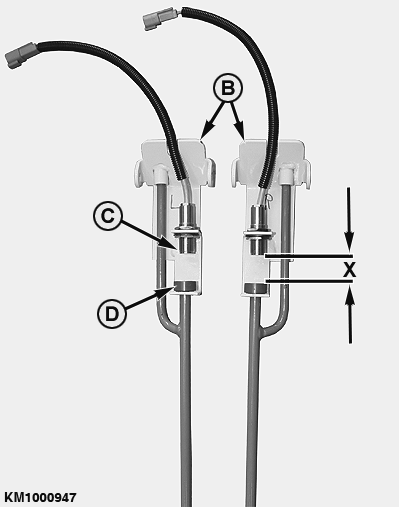

KM1000947-UN-11AUG09

A - Screw

B - Locking Status Indicator

C - Sensor

D - Magnet

X - 23.5 mm (0.93 in.)

NOTE: Perform this adjustment only if the support wheel is NOT recognized by the forage harvester software.

1. Take out screw (A) and pull out locking status indicator (B) to the top.
2. Check distance (X) of 23.5 mm (0.93 in.) between sensor (C) and magnet (D) and adjust as required.

   Item	Measurement	Specification
   Sensor and Magnet	Distance from Each Other	23.5 mm 0.93 in.

3. Reinstall locking status indicator (B) and tighten with screw (A).
