Automatic Support Wheel Identification

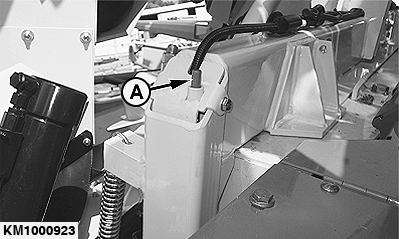

KM1000923-UN-30JUL09

A - Rod

With support wheel attached and completely locked, rod (A) extends on both sides of the attaching frame and transmits an impulse to the forage harvester software via electrical sensors.

Thus support wheel is identified by the forage harvester and return to pressure for driving on public roads can be adjusted.

IMPORTANT: For support wheel operation the electrical light plug must always be connected to the forage harvester.
