Unfold the Rotary Harvesting Unit

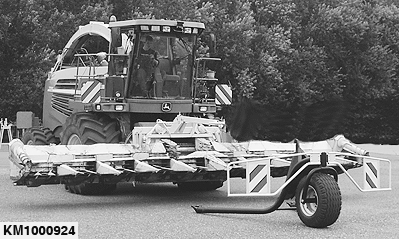

KM1000924-UN-30JUL09

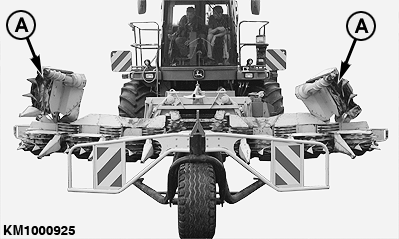

KM1000925-UN-30JUL09

A - Outer folding sections

Unfold the rotary harvesting unit completely.

NOTE: If there is not enough space, the outer folding sections (A) may be folded up. The inner sections must remain in horizontal position.
