Attach Support Wheel

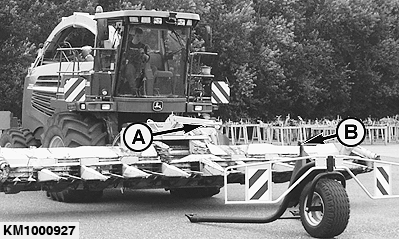

KM1000927-UN-30JUL09

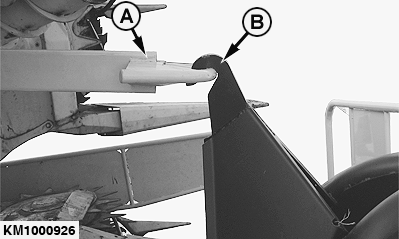

KM1000926-UN-30JUL09

A - Feed bar

B - Hook

NOTE: If rotary harvesting unit can not be unfolded as described above due to lack of space, support wheel must be transported to a location where it can be attached.

Engage center feed bar (A) of rotary harvesting unit into hook (B) of support wheel.

Lift rotary harvesting unit with support wheel.
