Locking Device Position

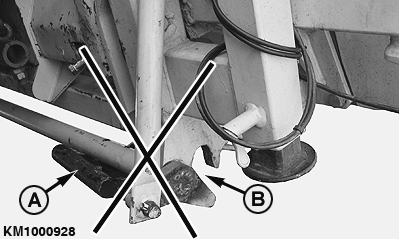

KM1000928-UN-30JUL09

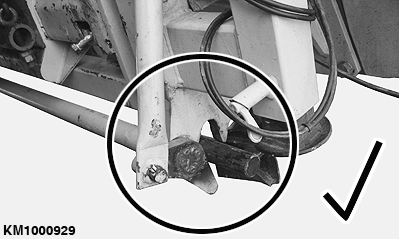

KM1000929-UN-30JUL09

CAUTION: When lifting the rotary harvesting unit, make sure that locking device (A) is centered in locking pawl (B).

NOTE: Repeat attaching procedure until locking device is in the correct position.
