Lock Support Wheel

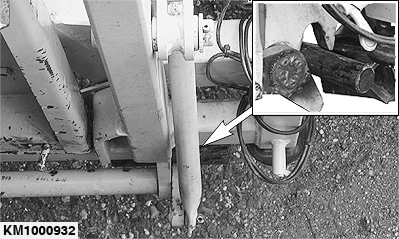

KM1000932
KM1000932-UN-31JUL09

NOTE: The locking mechanism is controlled by the hydraulic folding function of the rotary harvesting unit.

  1. When locking device is centered in locking pawl as shown, lift rotary harvesting unit.

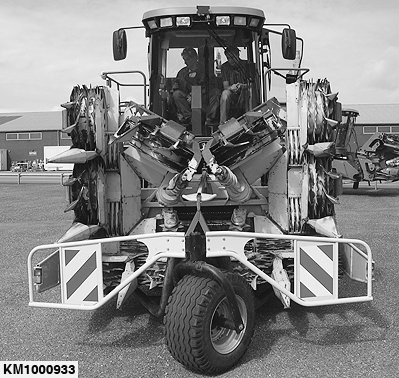

  2. KM1000933
    KM1000933-UN-31JUL09

    Fold the rotary harvesting unit completely.

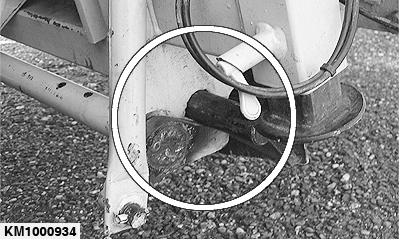

  3. KM1000934
    KM1000934-UN-31JUL09

    Folding of the rotary harvesting unit will lock the support wheel automatically.
