Detach Support Wheel

1.

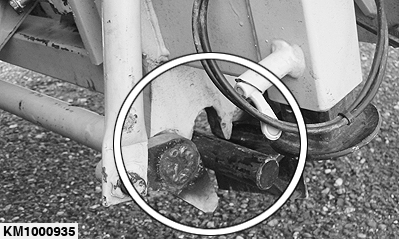

   KM1000935-UN-31JUL09

   Lift rotary harvesting unit.
2. Unfold the outer folding sections until the locking device is disengaged (as shown).

3.

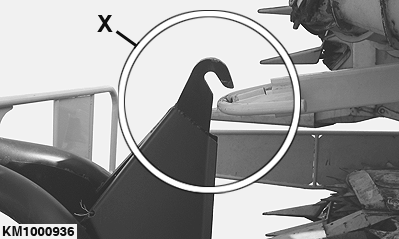

   KM1000936-UN-31JUL09

   Lower rotary harvesting unit until feed bar disengages from hook of support wheel (see detail "X").
4. Park support wheel and drive forage harvester backwards.

CAUTION: Always park support wheel on a level surface so that it may be reattached later.

Do not park support wheel on a slope; otherwise take precautions to prevent it from rolling away.
