Driving on Roads
ZX1037121-UN-19MAR05

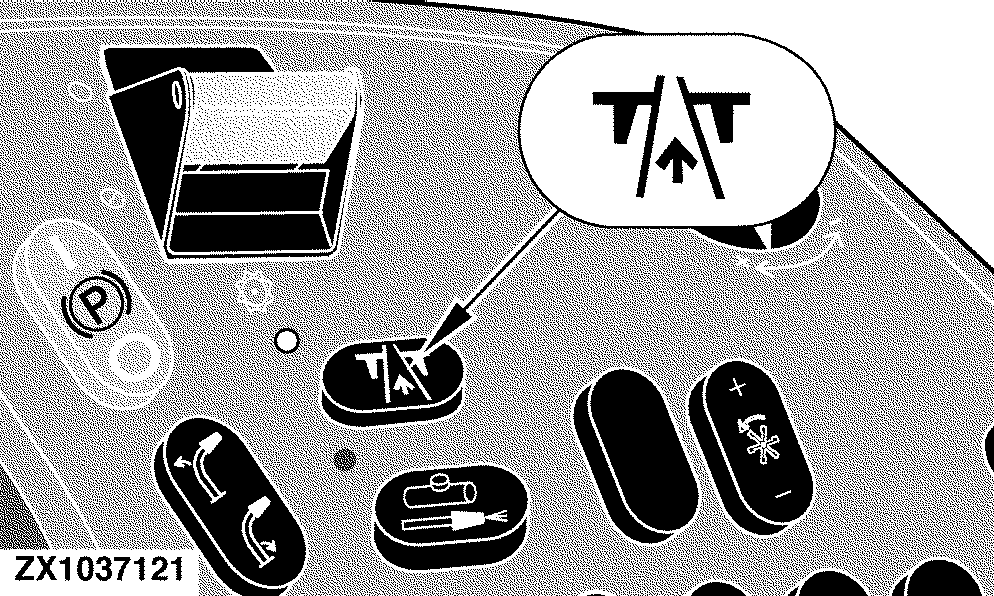

Before driving forage harvester on public roads, make sure
that road safety switch is in road position.
This ensures that all the hydraulic functions with the exception
of the steering and the return to pressure are switched off.
ZX028651-UN-26APR02

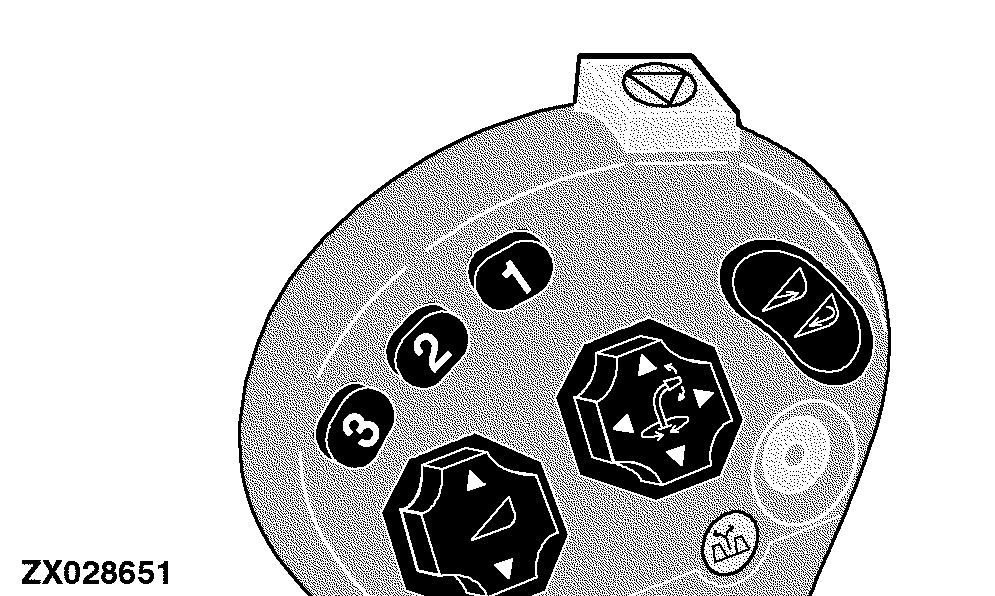

Press button (3) on the multi-function lever to adjust the
previously read pressure value of the return to pressure.
KM1000942-UN-31JUL09

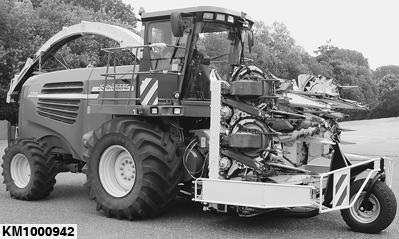

Support wheel is now ready for operation.
|
|
KM00321,00001DD-19-20090731
|
|
