Bleeding the Cylinder

L30639
L30639-UN-05SEP94

  1. Connect remote hydraulic cylinder to couplers.

  2. Start engine.

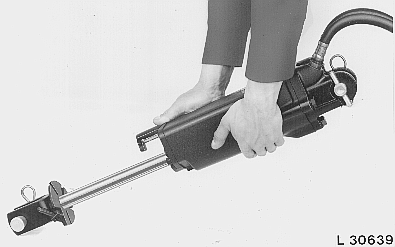

  3. Hold the remote hydraulic cylinder with the piston pointing down (see illustration).

  4. With the cylinder in this position, move the SCV control lever backward and forward seven or eight times.

When bleeding the remote cylinder, also check for leaks.

If the implement has a locking device to hold it raised during transport, be sure to disengage the lock before operating the cylinder. See your implement operator's manual.
