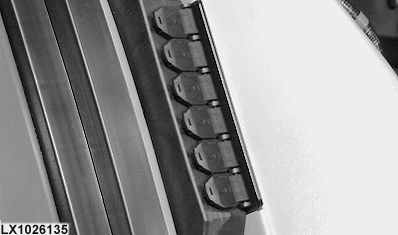

Multiple Power-Outlet Socket Strip

LX1026135-UN-21MAY01

A strip of extra sockets may be fitted to the front of the switch console. The sockets are protected by a single 30-amp fuse.

Turning the key in the main (key) switch left or right will provide the multiple power-outlet socket strip with power.

A conversion kit is available from your John Deere dealer for equipment that requires a constant power supply even when the ignition is off.
