Wheel Slip (3)

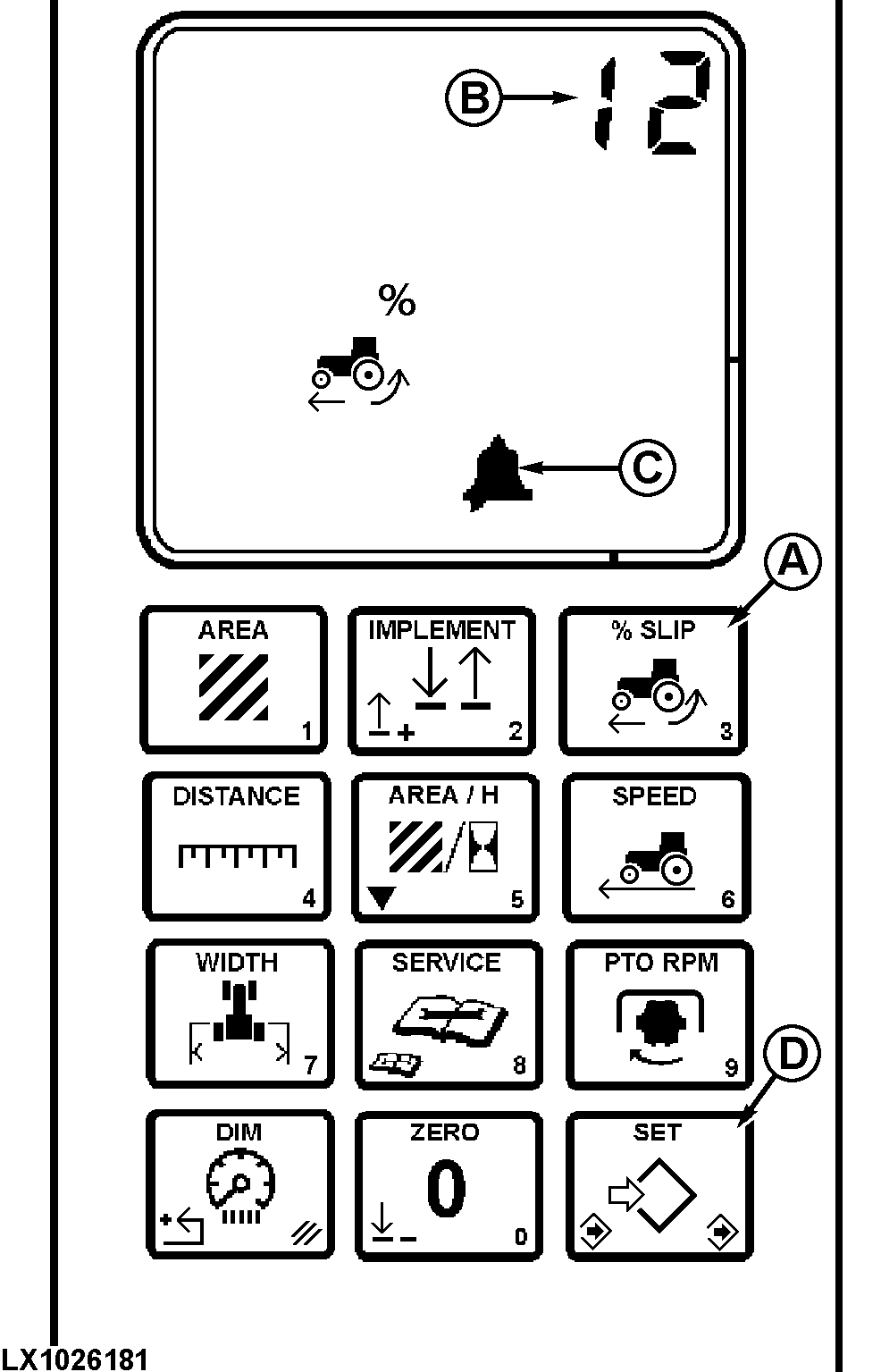

LX1026181-UN-29JAN02

A - % slip switch

B - Numerical display

C - Wheel slip alarm

D - Set/save switch

Radar must be operational to provide true ground speed. If true ground speed is not available, “---” will be displayed.

Press % SLIP switch (A). The numerical display will show current wheel slip.

Press switch again to display the wheel slip alarm setting. An alarm symbol will be displayed.

The illustration shows that the alarm is currently set at 12% (B). The alarm symbol (C) indicates that the alarm mode is set.

Press (D) to change alarm value.

Input alarm setting using touch pad, then press (D).

Entering “0” as an alarm value will shut off alarm.
