Worklight Switches

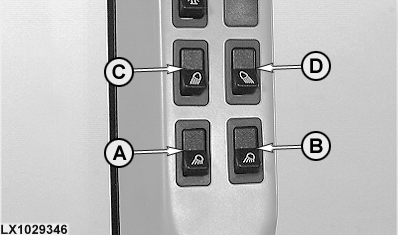

LX1029346-UN-18OCT02

A - Front corner worklights

B - Cab frame worklights

C - Front roof worklights

D - Rear roof worklight(s)

The work lights can be switched on and off using the switches shown here; the main light switch must first be set to position 4.
