Seven-Terminal Trailer Socket

LX1029348-UN-18OCT02

LX1019770-UN-17NOV00

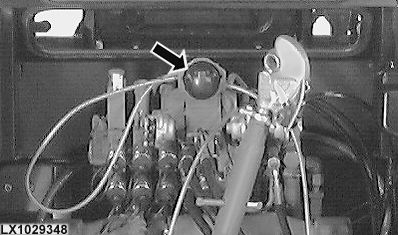

The socket allows lights, turn signals and other electrical equipment on a trailer or implement to be connected. Always use additional lighting on a mounted implement if this conceals the turn signals and other lights at the rear of the tractor.

Suitable plugs can be obtained from your John Deere dealer.

Terminal (A) is the ground connection.

Connection	Function	Wire color
1	L.h. turn signal	Dark green
2	—	—
3	Ground	Black
4	R.h. turn signal	Purple
5	R.h. tail light	Gray
6	Brake lights	Light blue
7	L.h. tail light	Gray
