Comfort Seat

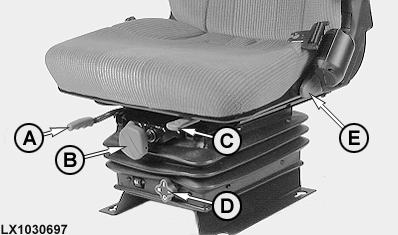

LX1030697-UN-10JAN03

A - Lever for horizontal adjustment

B - Weight adjustment

C - Lever for fore/aft suspension

D - Knob for height adjustment

E - Backrest tilt

To adjust the seat to suit a weight put upon it, turn knob (B). When the seat is set to the weight of the operator, a green mark appears in the display window.

To adjust the height, move knob (D) to one of four possible positions.

Fore/aft suspension:

• Lever (C) to the right - Fore/aft suspension
• Lever (C) to the left - No fore/aft suspension
