Socket

3-terminal power outlet socket

LX1030717-UN-13JAN03

LX1030718-UN-13JAN03

Terminals 15/80 and 82 of 3-terminal power outlet socket (A) are protected by a 30-amp fuse. Terminal 31 is ground.

The 3-terminal power outlet socket is used to connect electrical equipment. Turning the key in the main (key) switch left or right will provide the power-outlet socket with power.

A conversion kit is available from your John Deere dealer for equipment that requires a constant power supply even when the ignition is off.

Routing the cables

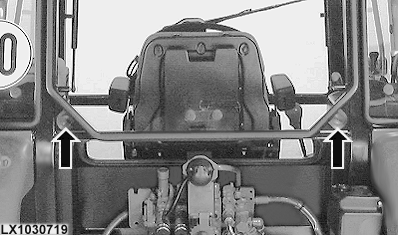

LX1030719-UN-13JAN03

The rear window of the cab is provided with two openings, allowing the cables to be routed. Open the window and take out the rubber stoppers. Cut the rubber stoppers at the incisions provided to enable the cables to be routed. Connect the plugs, insert the rubber stoppers and close the window.
