After the First 4 and 8 Hours of Operation

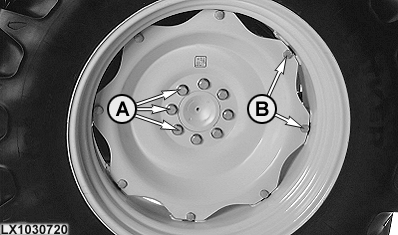

Tighten Rear Wheel Retaining Bolts/Nuts

LX1030720-UN-13JAN03

A - 500 Nm (370 lb-ft)

B - 230 Nm (170 lb-ft)

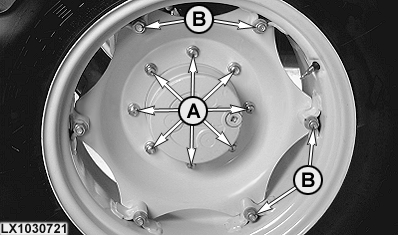

Tighten Front Wheel Retaining Bolts/Nuts

LX1030721-UN-13JAN03

A - 300 Nm (220 lb-ft)

B - 230 Nm (170 lb-ft)
