Rockshaft Remote Control

LX1030748-UN-14JAN03

LX1030749-UN-14JAN03

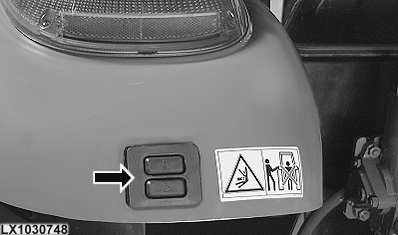

This switch allows the rockshaft to be operated at a distance from the operator's position. For safety reasons, the rockshaft rises and drops at a slower rate. The height and depth values are ignored.

Push upper switch - Raise implement

Push lower switch - Lower implement

Once the remote control has been activated, the rockshaft is prevented from moving accidentally. To make the rockshaft ready for operation again, either:

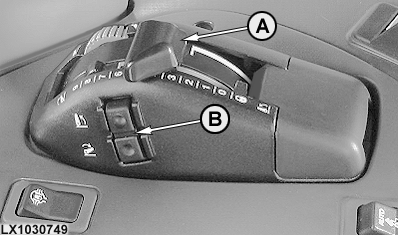

• move hitch control (A) to the position that corresponds to the position of the draft links,
• move hitch control (A) to one of the end positions, or
• actuate raise/lower switch (B).
