Adjusting Rate of Implement Drop

LX1030753-UN-14JAN03

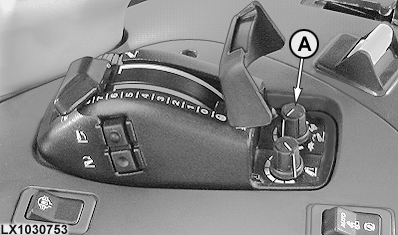

The rate at which the rockshaft and mounted implement will drop is controlled by turning control (A).

The rate-of-drop varies with the setting of control (A) and the weight of the mounted implement. The heavier the implement, the faster the rate-of-drop; the lighter the implement, the slower the rate-of-drop.
