Load/Depth Adjustment

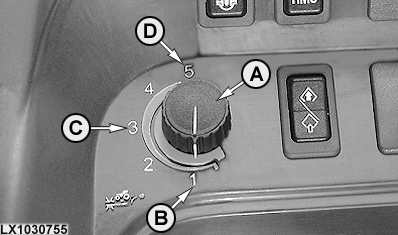

LX1030755-UN-27JAN03

A - Load/depth control

B - 1=Depth control

C - 2-4=Mixed control

D - 5=Load control

Before connecting implements to the three-point hitch, load/depth control (A) must be moved to position “1” (depth control) to prevent unintentional raising or lowering of the rockshaft.
