Direct Actuation

LX1030761-UN-31JAN03

In the event of an electrical failure, the rockshaft can be actuated as follows:

Pull out cable. Take off the protective cap. Run the engine.

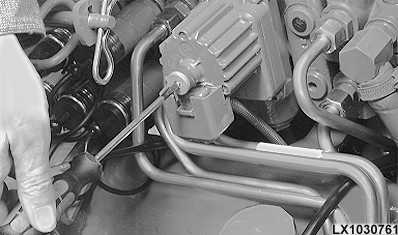

From the operator's seat, press down the screw with a screwdriver until it engages in the detent, and then turn clockwise until the three-point hitch rises.

See your John Deere dealer.
