Attaching Three-Point Hitch Mounted And Drawn Implements

LX1030764-UN-20JAN03

LX1030756-UN-27JAN03

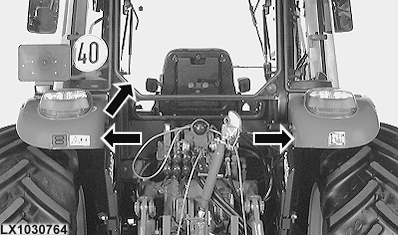

Be sure not to damage exposed parts of cab (see arrows) when attaching three-point hitch mounted or drawn implements.

Do not stand between tractor and implement unless the handbrake is applied firmly and the parking lock (if equipped) is engaged.

When attaching three-point hitch mounted or drawn implements for the first time, conduct a trial to ensure that implement will not damage cab in any position. With hitch-mounted implements, pay attention to the highest lift position; with drawn implements, be careful when turning sharply.

If a swinging drawbar is installed, set it in the front, short position. The swinging drawbar can also be swung to the right or left and secured there.

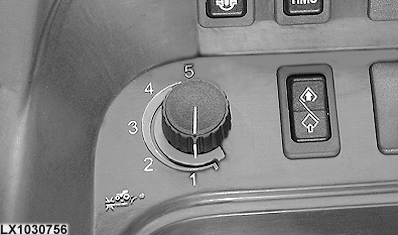

When attaching an implement, first make sure that the rockshaft load/depth control is set to “1” (depth control).
