Fuse and Relay Boxes

Fuse and relay boxes

LX1030768-UN-20JAN03

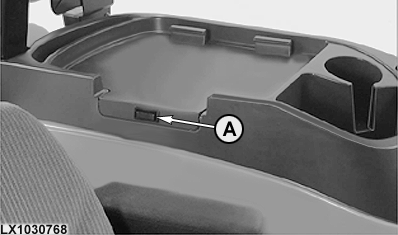

The fuse and relay boxes are located underneath the storage rack.

Press down latches (A) and lift off the trim panel.

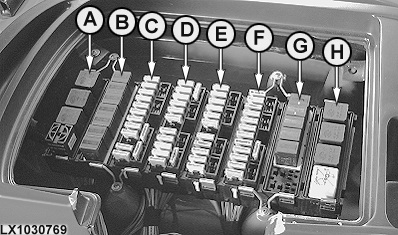

LX1030769-UN-20JAN03

A - Relay box K01

B - Relay box K02

C - Fuse box F03

D - Fuse box F04

E - Fuse box F05

F - Fuse box F06

G - Relay box K07

H - Relay box K08

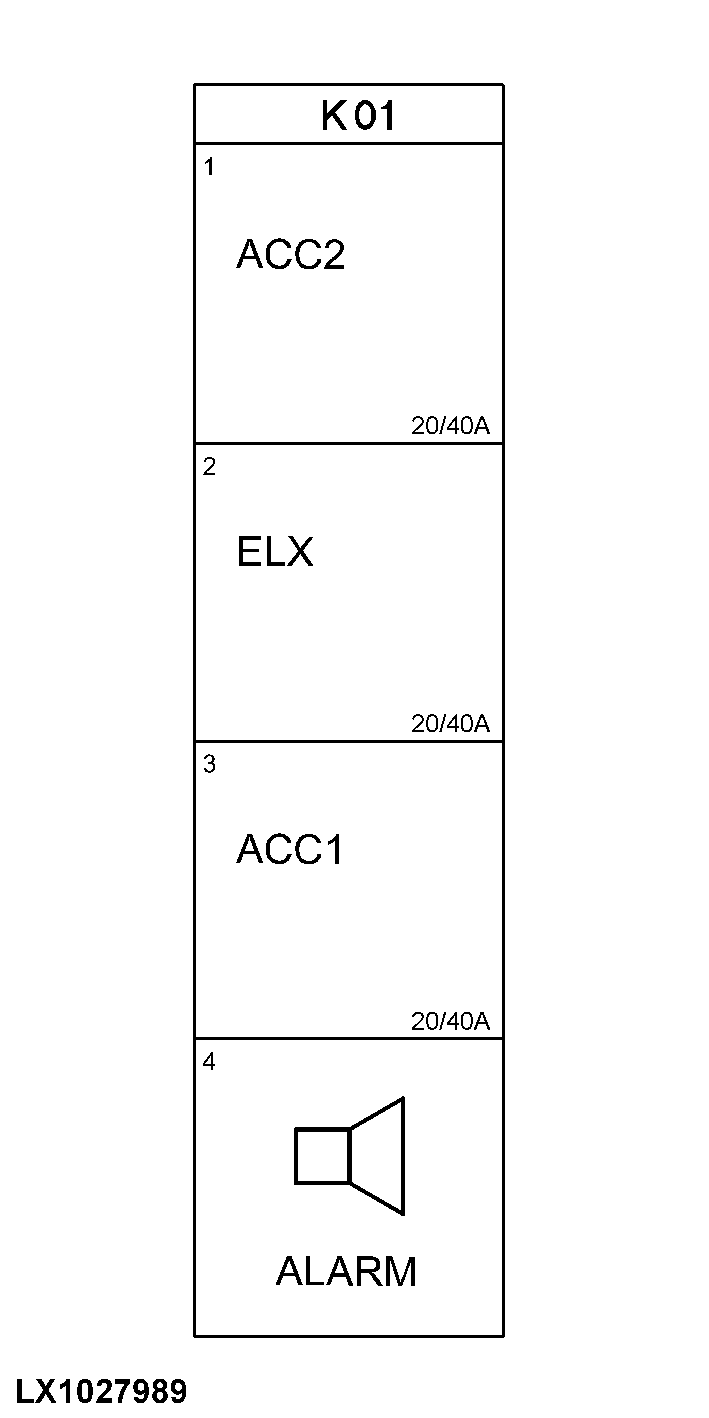

Relays (relay box K01)

LX1027989-UN-15NOV01

K01/1 - Relay for accessories (plugs for front loader, beacon light, windshield/rear window wipers and washer system)
K01/2 - Relay for electrical power supply
K01/3 - Relay for accessories (horn, radio, cigarette lighter and operator's seat)
K01/4 - Acoustic alarm

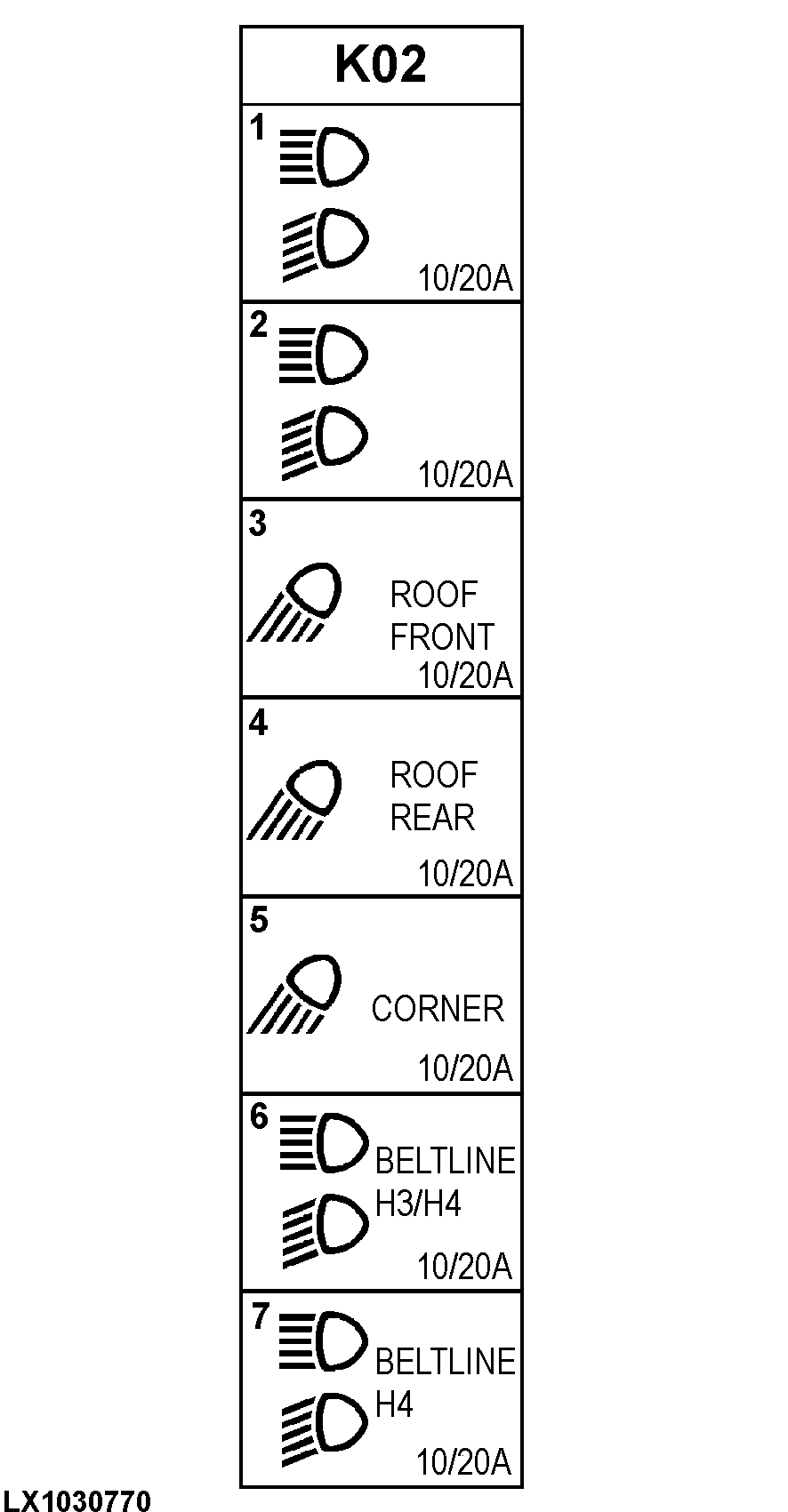

Relays (relay box K02)

LX1030770-UN-20JAN03

K02/1 - Relay for dipped-beam headlights (main headlights)
K02/2 - Relay for full-beam headlights (main headlights)
K02/3 - Relay for worklights on front of cab roof
K02/4 - Relay for worklights on rear of cab roof
K02/5 - Relay for front corner worklights
K02/6 - Relay for worklights and full-beam headlights (headlights on cab frame)
K02/7 - Relay for dipped-beam headlights (headlights on cab frame)

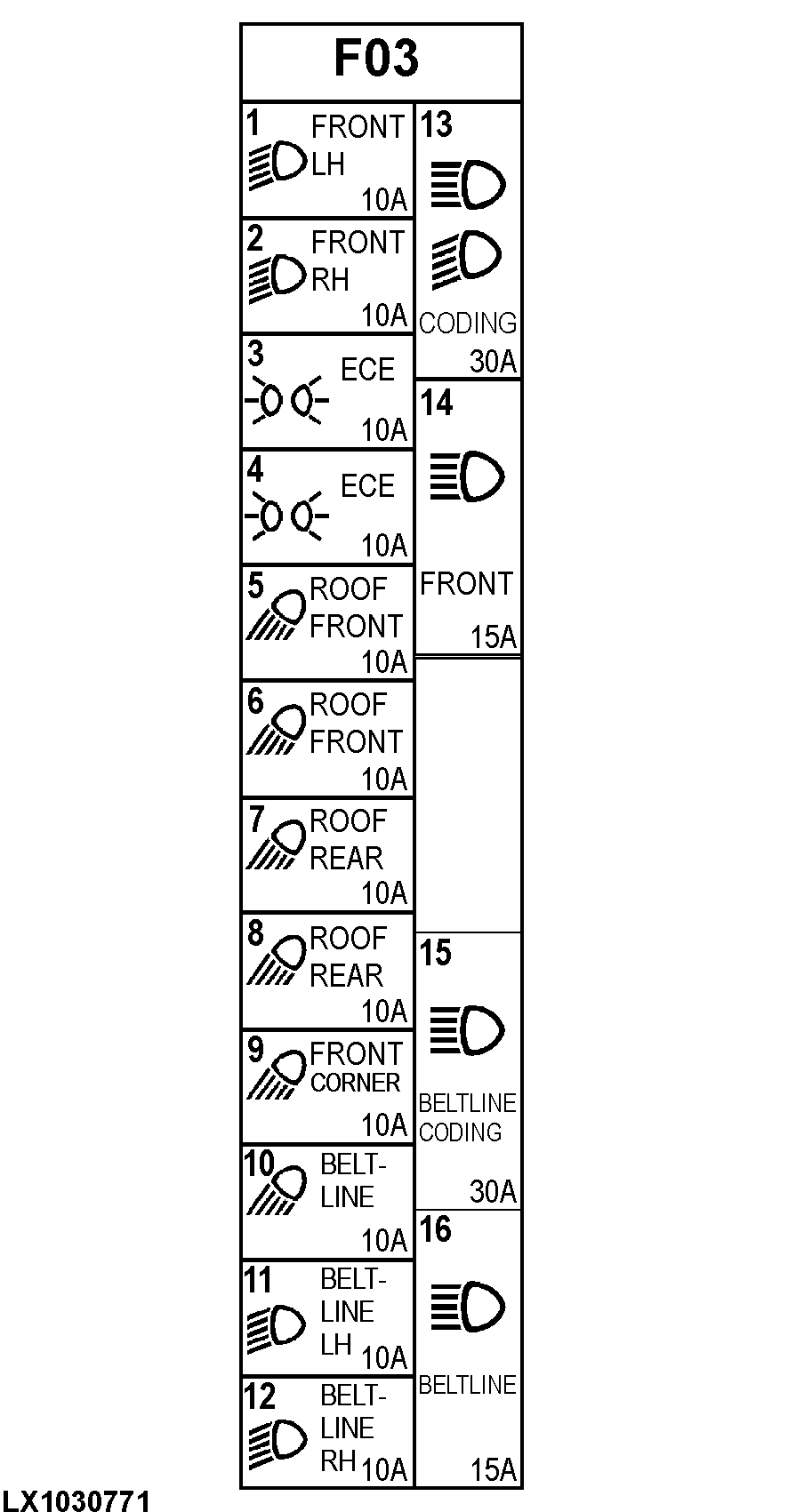

Fuses (fuse box F03)

LX1030771-UN-20JAN03

F03/01 - 10-amp dipped-beam headlight, left
F03/02 - 10-amp dipped-beam headlight, right
F03/03 - 10-amp, r.h. tail light, l.h. clearance light, license plate light on right side
F03/04 - 10-amp, l.h. tail light, r.h. clearance light, license plate light on left side
F03/05 - 10-amp outer worklight on front of cab roof
F03/06 - 10-amp inner worklight on front of cab roof
F03/07 - 10-amp outer worklight on rear of cab roof
F03/08 - 10-amp inner worklight on rear of cab roof
F03/09 - 10-amp front-corner worklights
F03/10 - 10-amp worklights on cab frame
F03/11 - 10-amp dipped-beam headlight on left of cab frame
F03/12 - 10-amp dipped-beam headlight on right of cab frame
F03/13 - 30-amp dipped-beam headlights (main headlights)
F03/14 - 15-amp full-beam headlights (main headlights)
F03/15 - 30-amp full-beam headlights (headlights on cab frame)
F03/16 - 15-amp full-beam headlights (headlights on cab frame)

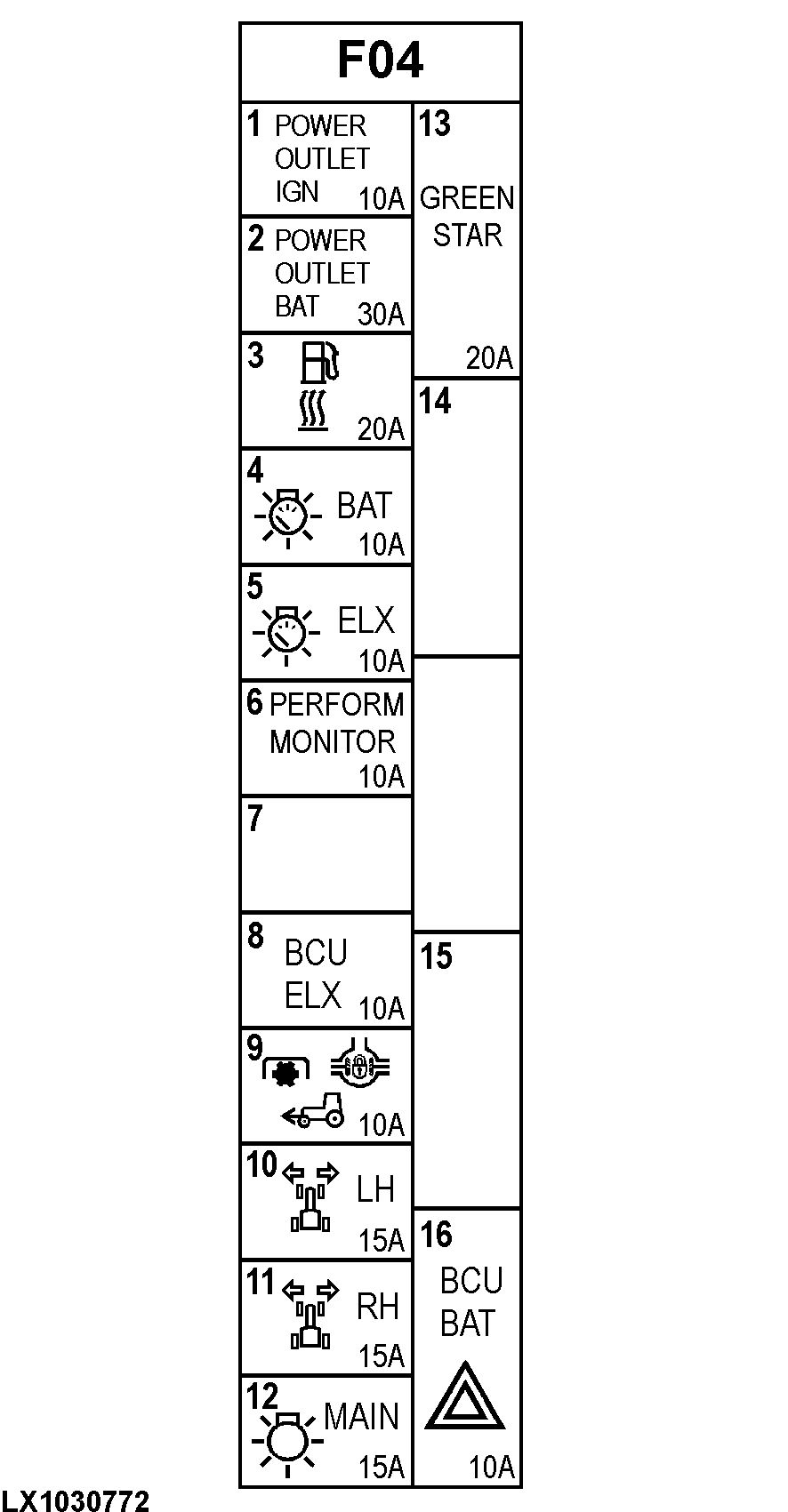

Fuses (fuse box F04)

LX1030772-UN-20JAN03

F04/01 - 10-amp 3-terminal socket and socket strip (power supply)
F04/02 - 30-amp 3-terminal socket, socket strip (battery voltage)
F04/03 - 20-amp fuel preheater
F04/04 - 10-amp basic informator (battery voltage)
F04/05 - 10-amp basic informator (power supply)
F04/06 - 10-amp performance monitor PRF
F04/07 - Vacant
F04/08 - 10-amp Basic Control Unit (BCU) (power supply)
F04/09 - 10-amp Basic Control Unit (BCU) (PTO, front-wheel drive, differential lock, HMS II, turn-signal switch, handbrake, seat switch and radar)
F04/10 - 15-amp left-hand turn signal
F04/11 - 15-amp right-hand turn signal
F04/12 - 15-amp light switch and flash-to-pass
F04/13 - 20-amp GreenStar
F04/14 - Vacant
F04/15 - Vacant
F04/16 - 10-amp Basic Control Unit (BCU) and hazard warning flasher (battery voltage)

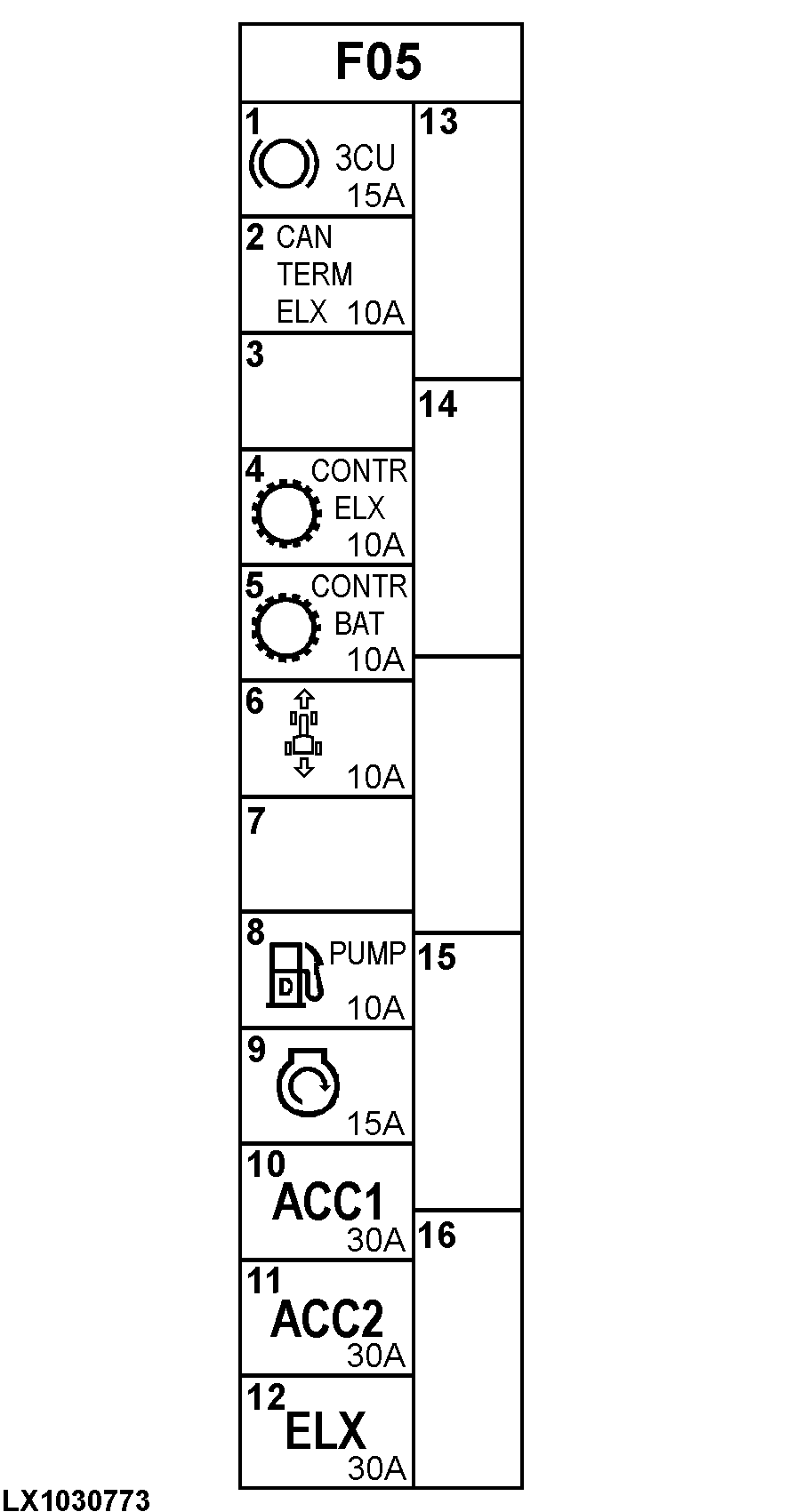

Fuses (fuse box F05)

LX1030773-UN-20JAN03

F05/01 - 15-amp brake switch and brake light
F05/02 - 10-amp CAN BUS terminator and service plug
F05/03 - Vacant
F05/04 - 10-amp Electronic PowrQuad Controller (EPC) (power supply)
F05/05 - 10-amp Electronic PowrQuad Controller (EPC) (battery voltage)
F05/06 - 10-amp Electronic PowrQuad Controller (EPC) (power supply)
F05/07 - Vacant
F05/08 - 10-amp fuel transfer pump and injection pump shut-off valve
F05/09 - 15-amp main (key) switch (terminals BAT1 and BAT2)
F05/10 - 30-amp fuse for accessories (horn, radio, cigarette lighter and operator's seat)
F05/11 - 30-amp fuse for accessories (plugs for front loader, beacon light, windshield/rear window wipers and washer system)
F05/12 - 30-amp power supply for electronics
F05/13 - Vacant
F05/14 - Vacant
F05/15 - Vacant
F05/16 - Vacant

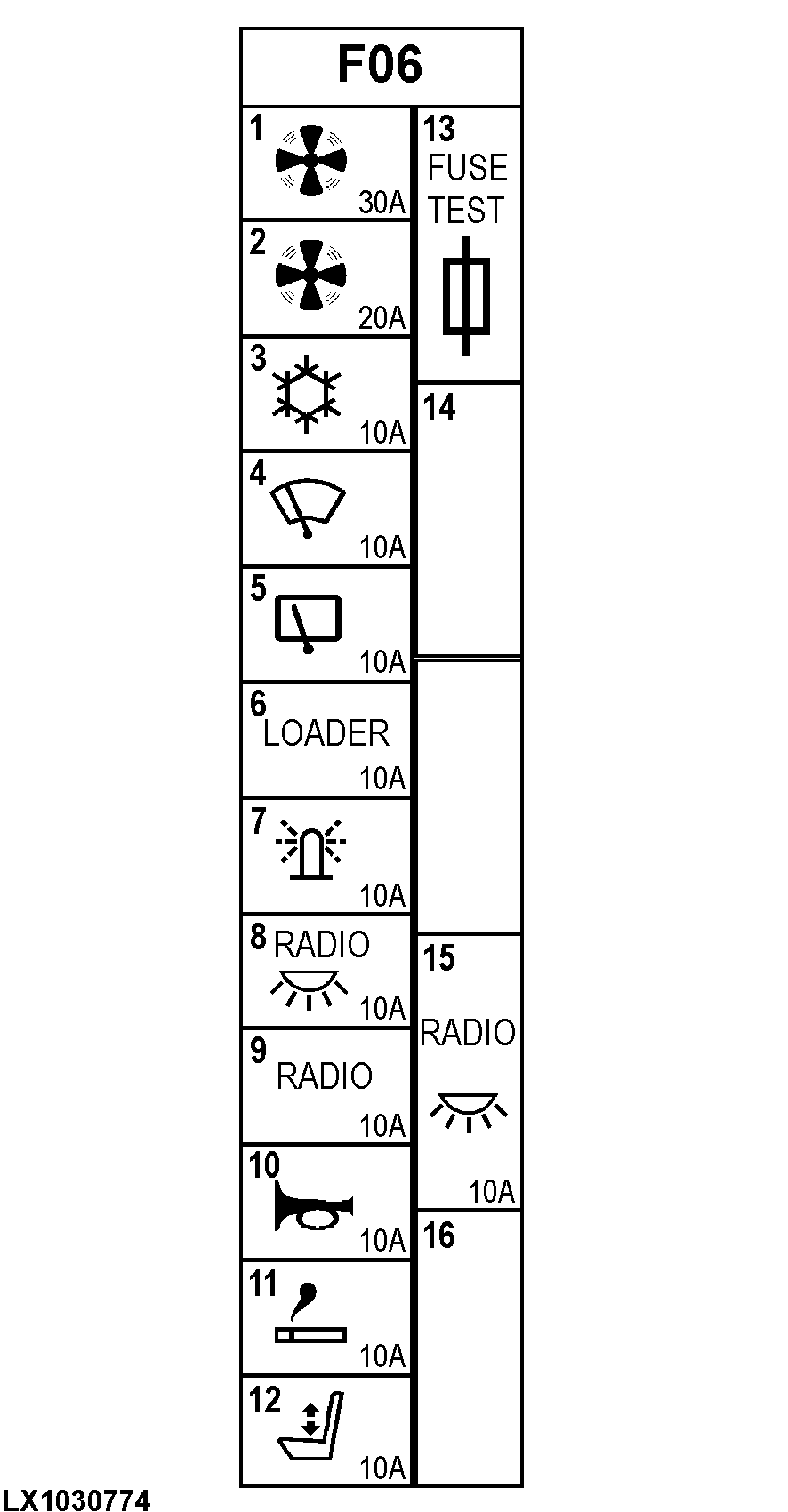

Fuse box F06

LX1030774-UN-20JAN03

F06/01 - 30-amp air-conditioning system and fan
F06/02 - 20-amp fan
F06/03 - 10-amp air-conditioning system
F06/04 - 10-amp windshield wiper and washer
F06/05 - 10-amp rear window wiper and washer
F06/06 - 10-amp plug for front loader
F06/07 - 10-amp beacon light
F06/08 - 10-amp console light, background lighting for pressure gauge, radio and instrument panel
F06/09 - 10-amp radio (power supply)
F06/10 - 10-amp horn
F06/11 - 10-amp cigarette lighter
F06/12 - 10-amp operator's seat
F06/13 - Fuse tester (signal can be heard if fuse is intact)
F06/14 - Vacant
F06/15 - 10-amp dome light, radio (battery voltage)
F06/16 - Vacant

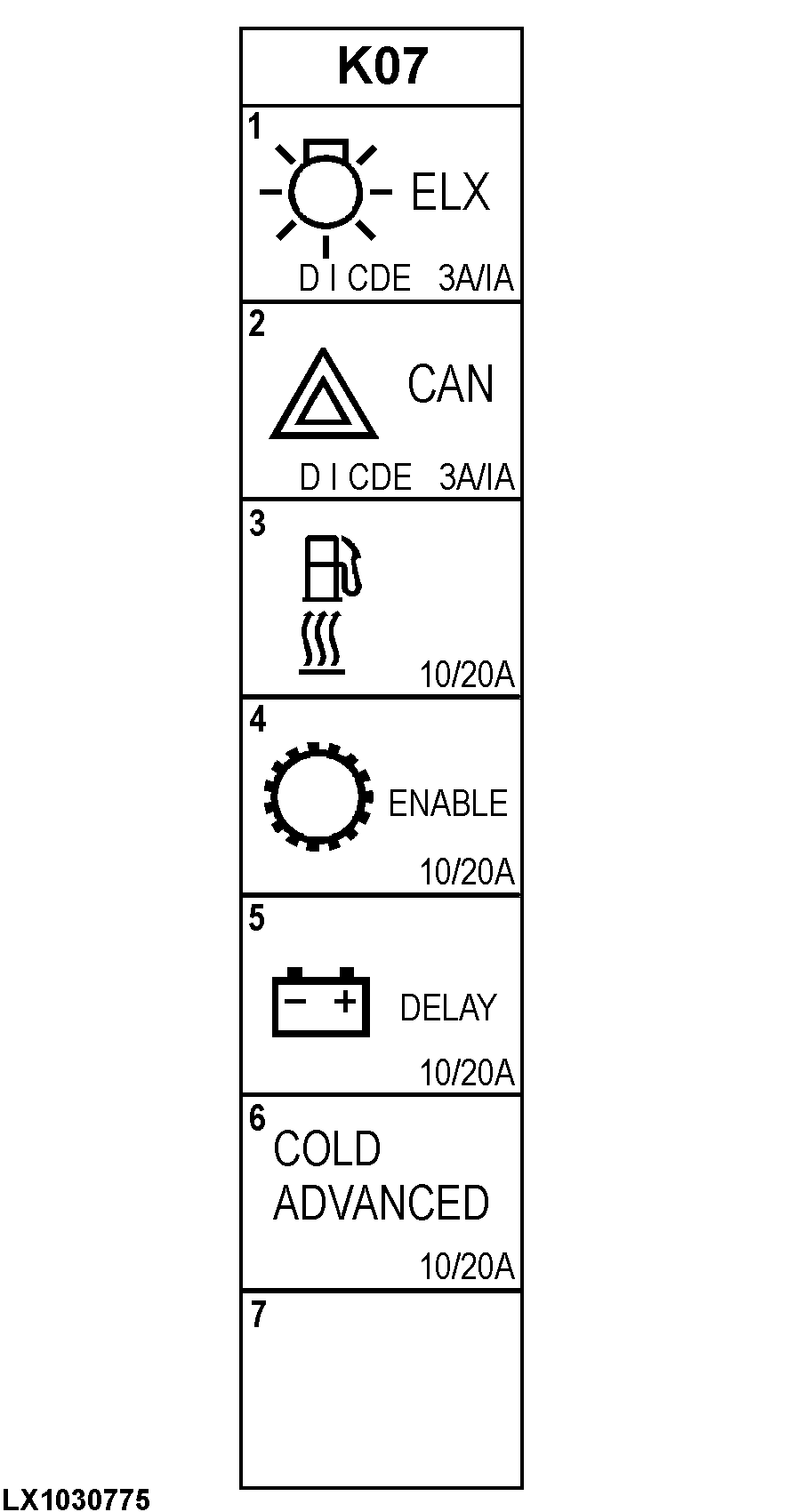

Relays (relay box K07)

LX1030775-UN-20JAN03

K07/1 - 3-amp lighting diode
K07/1 - 1-amp diode for power supply to electronics
K07/2 - 3-amp CAN-BUS diode
K07/2 - 1-amp CAN-BUS diode
K07/3 - Relay for fuel preheater
K07/4 - Enable relay
K07/5 - Alternator relay
K07/6 - Relay for cold-weather starting aid
K07/7 - Vacant

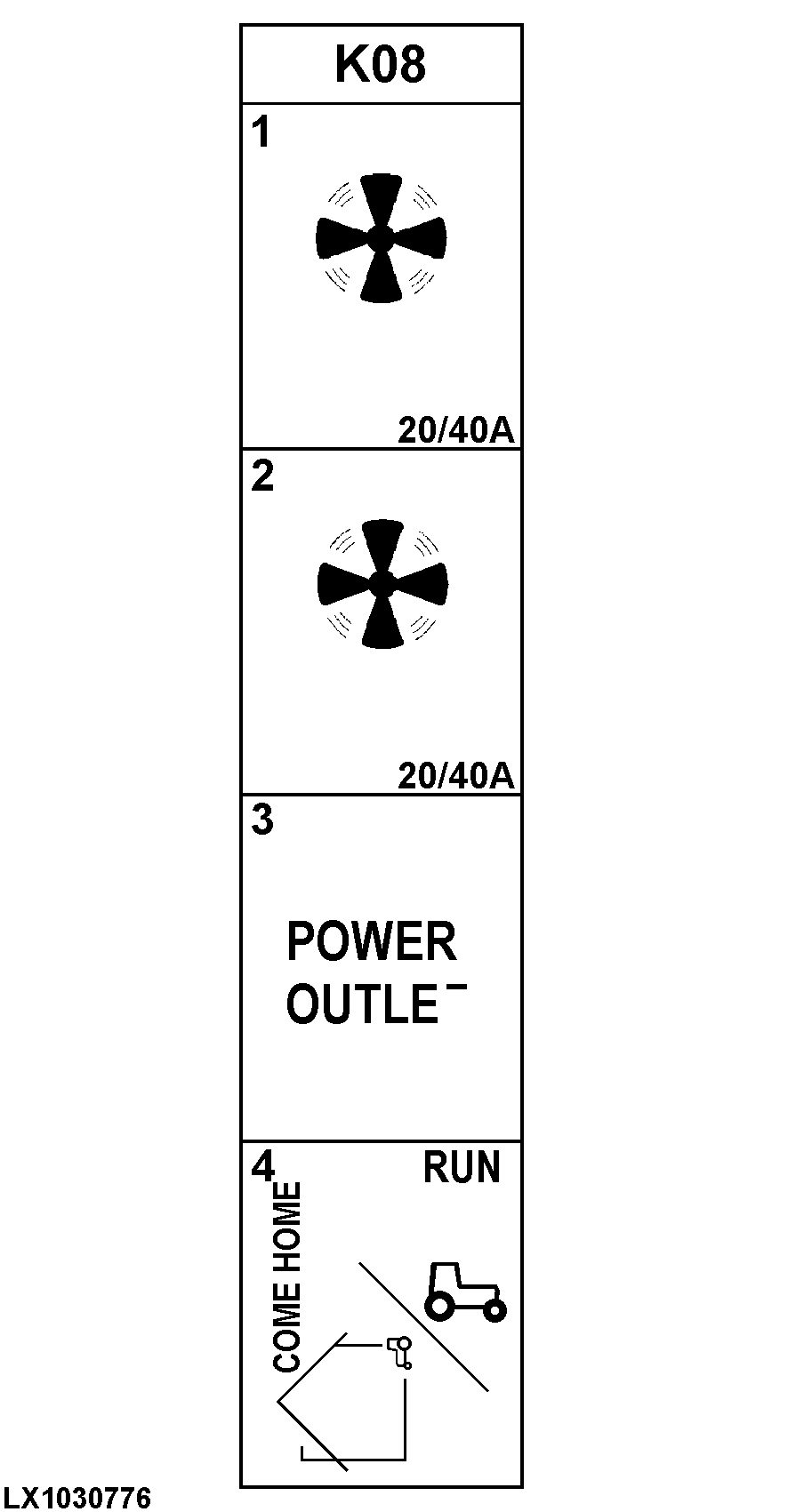

Relays (relay box K08)

LX1030776-UN-20JAN03

K08/1 - Relay for air-conditioning system and fan
K08/2 - Relay for fan
K08/3 - Relay for 3-terminal socket, socket strip
K08/4 - Plug for “come home” mode
