Operating the PTO by Remote Control

LX1030783-UN-31JAN03

LX1030784-UN-27JAN03

LX1030785-UN-27JAN03

LX1030788-UN-27JAN03

A - Preselector switch

B - Rear PTO switch

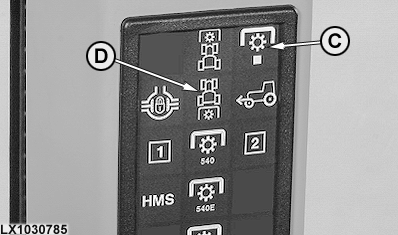

C - Preselector indicator

D - Rear PTO indicator

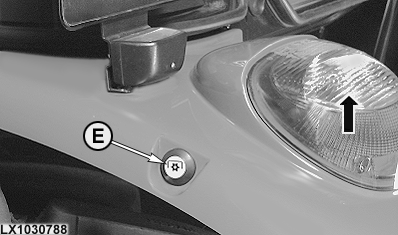

E - Remote-control switch

The rear PTO can be engaged and disengaged as described above regardless of whether a tractor is equipped with HMS.

If the rear PTO is to be operated from outside the cab, first press preselector switch (A). Indicator lights (C) and (D) come on. Then switch on rear PTO at switch (B). The PTO does not start at this stage; a continuous whistle signal is heard; the hazard warning lights flash. To switch on rear PTO from outside the cab, proceed as follows:

Press remote-control switch (E) on the fender. Rear PTO slowly starts up; hazard warning lights go out; rear turn signal light remains on (see arrow).

Release remote-control switch (E) within 4 seconds. Rear PTO coasts down (the whistle signal sounds continuously and the hazard warning lights flash).

If the rear PTO is to be operated for a lengthy period, press remote-control switch (E) for at least 4 seconds until the continuous light at rear turn signal (see arrow) goes out.

To switch off the rear PTO, actuate remote-control switch (E) - the whistle signal sounds intermittently and the hazard warning lights flash - or press the rear PTO switch (B) in the cab.

If the rear PTO is switched on in the cab, the rear PTO may be switched off at remote-control switch (E), but it cannot be switched on again without re-entering the cab.
