Pre-Assembling the Pick-Up Weight

When performing the work described below, comply with the safety instructions.

Equipment used to raise and transport the weight must be capable of bearing at least 900 kg (2000 lb).

Use approved lifting equipment only.

Observe safety rules. Do not stand under suspended loads.

To facilitate the transport of the weight, it is a good idea to pre-assemble it on a pallet. Make sure the bearing weight of the pallet is sufficient.



LX013997
LX013997-UN-02APR96

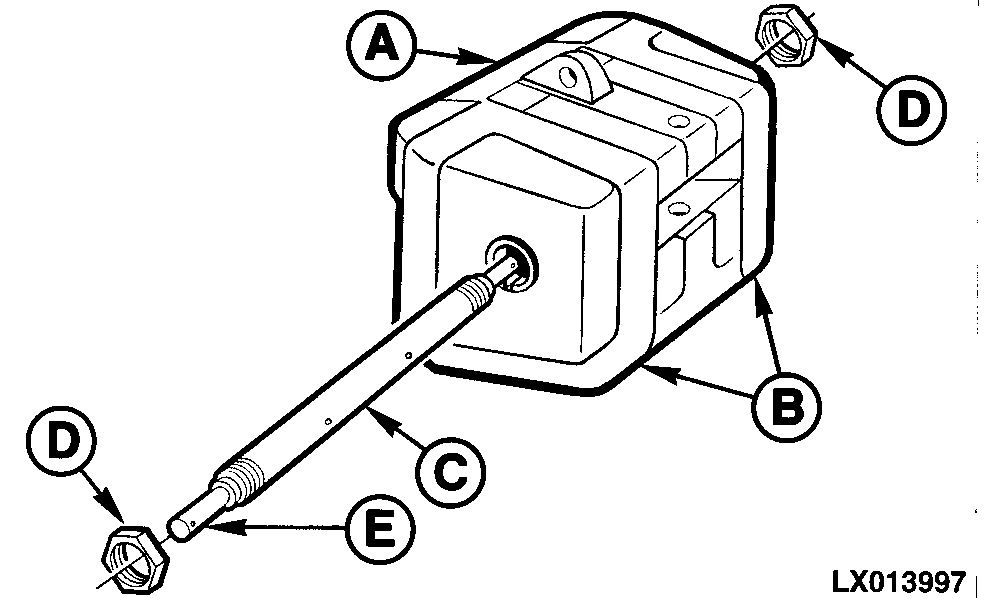

Use a hoist to lower the center weight (A) onto a level surface.

Arrange the side weights (B) alongside the center weight and install bearing shaft (C).

Tighten nuts (D) to 300 Nm (220 lb-ft).

Adjust pins (E) to their maximum lengths.

LX014001
LX014001-UN-02APR96

Put the center link bracket in position. Install and secure pin (A). Adjust the depth to which screw (B) is screwed into the center link bracket until the screw is in contact with the pick-up weight, and then counter-lock the screw.

The center link bracket has a recess (C) where the spacers can be stored when not in use.

When the center link bracket is not in use, it can be folded over and secured to the weight by means of hole (D).
