Selective Control Valves

LX1030794-UN-10FEB03

The tractor may be equipped one of three different types of selective control valve: 105 Series, 205 Series or 305 Series.

105 Series selective control valves provide the functions “Raise”, “Neutral” and “Lower”. 205 and 305 Series selective control valves provide an additional “Float” position.

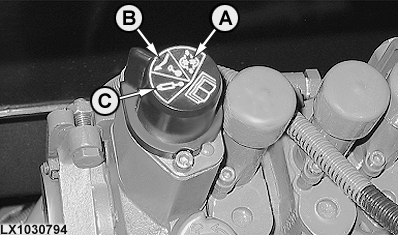

Series 305 selective control valves also offer the following choices:

• Position (A). The control lever remains in the “Raise” or “Lower” position until it is moved manually.
• Position (B). The control lever moves to “neutral” as soon as it is released.
• Position (C). The control lever remains in the “Raise” or “Lower” position until the pressure in the oil circuit has reached a predetermined value (e.g. when the remote control cylinder has reached its end position).
