Levers for Selective Control Valves

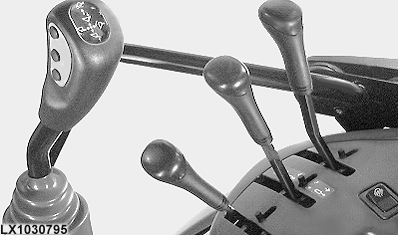

LX1030795-UN-29JAN03

L32200-UN-13APR00

A - Retract

B - Extend

C - Neutral position

D - Float position

The control lever has four settings.

The remote cylinder retracts when the lever is moved to the "Retract" position.
The remote cylinder extends when the lever is moved to the "Extend" position.
The remote cylinder is held in place when the lever is in "Neutral".
When the lever is in the "Float" position (i.e. piston moves freely inside remote cylinder), the mounted implement follows the ground contours.

If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.

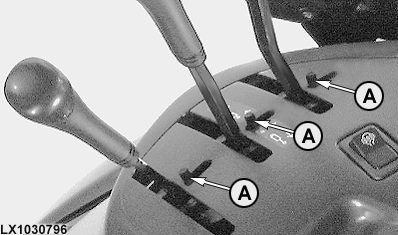

LX1030796-UN-29JAN03

Apply locks (A) when driving on roads and whenever the control levers are in neutral because they are not required.
