Checking Electrolyte Level of Battery

LX1030812-UN-30JAN03

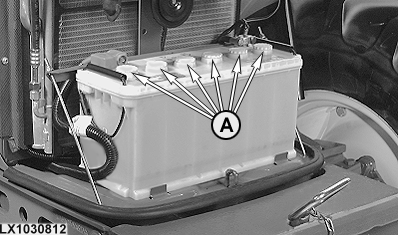

Remove filler caps (A). Level of electrolyte should be above the mark. Fill with distilled water only.

Check that the vent holes in the battery caps are open at all times. If terminal connectors are corroded, remove corrosion with a stiff bristle brush and then coat the terminals with an acid-free grease.
