Checking Oil Level in MFWD Axle Housing

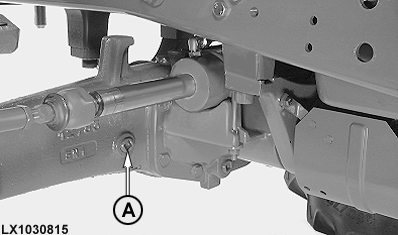

LX1030815-UN-30JAN03

Remove level plug (A). Oil should be level with plug bore. If necessary, top up with oil. Tighten level plug to 150 Nm (110 lb-ft). Always use a transmission oil listed in the “Fuel, Lubricants, Hydraulic Oil and Coolant” section.
