Checking Oil Level in MFWD Final Drives

LX1030816
LX1030816-UN-30JAN03

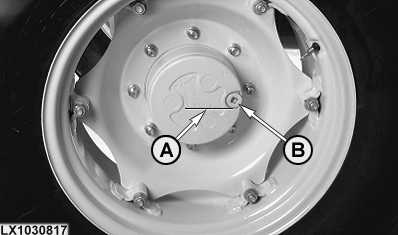

  1. Turn the wheel until “OIL LEVEL” mark (A) is horizontal.

  2. Remove level plug (B). Oil should be level with plug bore.

  3. If necessary, top up axle at this point. Tighten level plug to 150 Nm (110 lb-ft). Always use a transmission oil listed in the “Fuel, Lubricants, Hydraulic Oil and Coolant” section.

Replace oil in axle housing and final drives after the first 100 hours of operation. Then replace after every 1500 hours of operation or once every 2 years, whichever occurs first.
