Lubricating the Three-Point Hitch

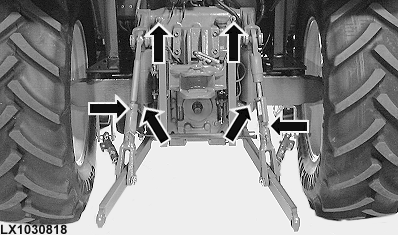

LX1030818-UN-30JAN03

Lubricate grease fittings with several strokes of grease gun. Use John Deere multi-purpose grease.

Some of the grease fittings are not visible in this illustration.
